If you operate in an industry that requires shaping, grinding, or cutting, particularly with air tools, then you are aware of the significance of carbide burrs. They are put to use in the processing of a wide variety of materials, ranging from iron, titanium, and steel to wood, ceramics, and fiberglass. Carbide burrs, which are also frequently referred to as die grinder bits or rotary files, are available in a range of forms, which enables you to choose a carbide burr that is most suited for the particular task at hand. Here is the information you need to know in order to use them successfully in your project.

Carbide Burrs are also referred to as Rotary Burrs, and their primary functions include cutting, shaping, grinding, and removing burrs, sharp edges, and superfluous material (deburring). It quickly cuts away any excess material that may be there. Surprisingly, burrs and residual stock chips are both referred to in the same way. Carbide burrs are frequently used in the process of removing uneven edges from surfaces. Additionally, carbide burrs are a separate kind of tool that are utilized on coated abrasives prior to finishing or polishing the surface. Metalworking, tool making, engineering, model engineering, wood carving, jewelry making, welding, chamfering, casting, deburring, grinding, and plate port sculpting are just some of the many industries that make extensive use of carbide burrs.

What Are Carbide Burrs?

Carbide burrs are specialized tools that may be used to deburr, cut, shape, grind, and chamfer tough materials. Carbide burrs come in a variety of cuts, each of which is optimized for working with a certain kind of material. Die grinders, pneumatic rotary tools, high-speed engravers, micro motors, pendant drills, flexible shafts, and hobby rotary tools are all examples of air tools that make use of carbide burrs.

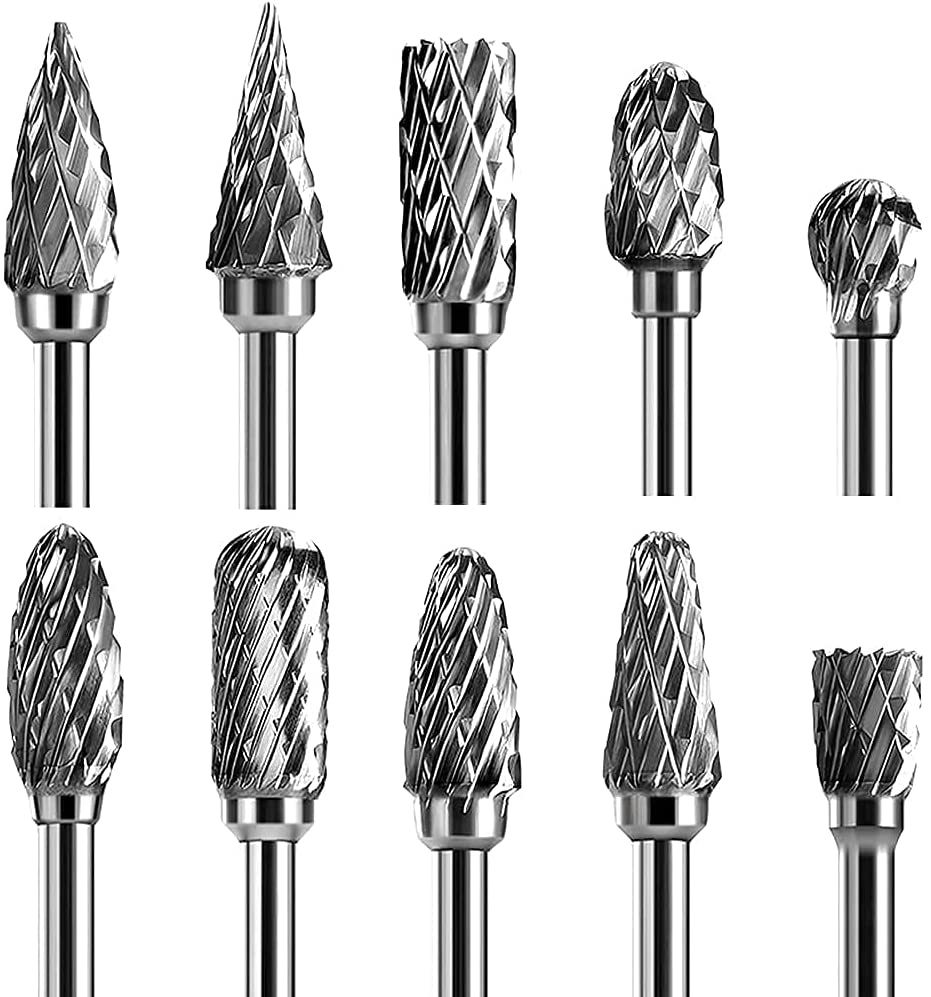

Carbide Burrs Can Make Various Cuts

In their most basic form, popular cuts may be broken down into three categories: single cut carbide burr, double cut carbide burr, and aluminium cut.

Single-Cut Carbide Burr

A right-handed (Up cut) spiral flute is characteristic of a single cut, which can also be referred to as a single flute carbide burr. Burrs that just have one cut can be utilized for a variety of applications. It will result in smooth workpiece finishes as well as an efficient removal of material. Burrs with a single cut are often used for general purposes. It will provide efficient removal of material as well as flawless finishes for the workpiece. They are utilized for working with ferrous metals as well as chrome steel, hardened steel, copper, and cast iron. By rapidly removing the material, a single-cut carbide burr can provide a smoother finish than other types of burrs.

• Heavy fabric removal
• Milling
• Deburring
• Cleaning
• Long chips are produced

Double-Cut Carbide Burr

Double-cut burrs provide quick stock removal even in the most demanding situations and with the most difficult materials. The designs lessen the need for pulling motion, which results in improved operator control and decreased chip production. The use of double-cut burrs is common practice when working with ferrous and non-ferrous metals, aluminum, and soft steel in addition to all types of non-metallic materials like stone, plastics, hardwood, and ceramic. This cut features a greater number of cutting edges than the previous one, allowing it to remove material more quickly. Because it produces smaller chips as it removes material, double-cutting results in a finish that is far smoother than that produced by single-cutting. Double-cut should be utilized for stock removal of a medium-light nature, deburring, fine finishing, cleaning, smooth finishes, and the production of smaller chips. Carbide burrs with a double cut are the most common type and may be used effectively in a variety of contexts.

Carbide burrs with a double cut are also known as diamond cut or cross cut. This type of cut, which creates smaller chips than a single cut, results in a smoother finish than the single cut. The Double Cut Carbide Burr has the sharpest cutting edge and may be used for a wide variety of tasks..

• Medium-light fabric removal
• Deburring
• Fine finishing
• Cleaning
• Smooth finish
• Produces small chips

Aluminum Cut Carbide Burr

The aluminum cut carbide burr is utilized often in a variety of businesses nowadays because of their openness to current technologies. The properties of non-ferrous materials are exactly what one would predict they would be. Copper, magnesium, and aluminum are some examples of non-ferrous materials that can be cut using our cutting tools. Our carbide burrs are capable of working with a wide variety of tough materials, including steel, aluminum, cast iron, various types of stone, ceramic, porcelain, hard wood, acrylics, fiberglass, and reinforced plastics, to name just a few.

What Steps Are Involved in the Production of a Carbide Burr?

The solid carbide burrs that HUANA produces are made from fine-grain tungsten carbide, a material that is incredibly heavy and solid. In addition, we are proud owners of specialized and one-of-a-kind CNC machinery, which we put to use while processing various types of carbide burrs. Our skilled specialists make certain that we have a promising carbide burr set that was manufactured in accordance with a quality assurance program.

This method consists of the following steps:

1. Evaluating materials

When the company receives YG6 (K20) materials from its suppliers, it sends skilled R&D personnel to evaluate the materials for purposes related to quality. After that, the manager of our warehouse accepts fine-grain tungsten material for the next phase immediately. For the shank, we utilise steel that has been hardened.

2. Brazing

After we have determined the appropriate materials, we will next braze the carbide burr and the steel in an even manner. We make use of silver, and this takes place at rather cool temperatures.

3. Balancing

The jump tests with the carbide burr come next and are performed as soon as the materials have been brazed together. The objective here is to achieve a certain degree of tolerance. Because of the CNC machinery, we are able to guarantee a precise tolerance level, which we have established at 0.1 mm and no higher.

4. Bending

This is what happens once we have achieved the appropriate tolerance balancing level, and the hardness of the carbide burr is essentially tested by bending. We bend the shank until it reaches a limit that has been specified in advance since this is the most accurate approach to determine how much strength it has acquired.

5. Shaping

Once the carbide burr has reached its full strength, we may begin the shaping process. In order to grind to the specified form, WE use computer numerical control (CNC) equipment.

6. Toothing

After the tests have been completed and passed, we supply carbide burrs that have specific cutting teeth that we refer to as flutes. Our CNC machine is also responsible for the precise grinding of the head, which forms the pointed flutes.

7. Polishing

Now what we need is a carbide burr that is polished and noticeable. Because of this, we polish the shank so that it is smooth, including the brazing place.

8. Packaging

The procedure is completed when it is eventually packaged into the appropriate containers. After the carbide burr has picked all of the tooling features, this step is performed. After preparing the logos and labels, we arrange the distribution of the products to the appropriate clients..

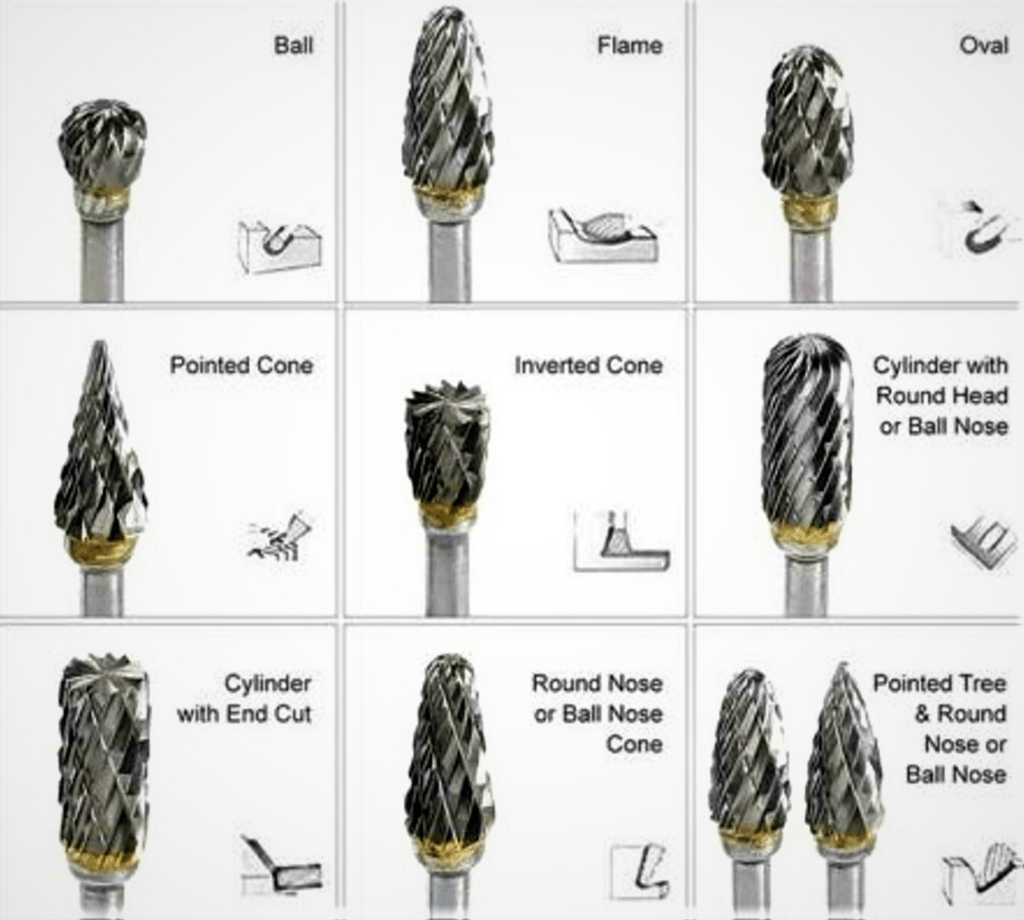

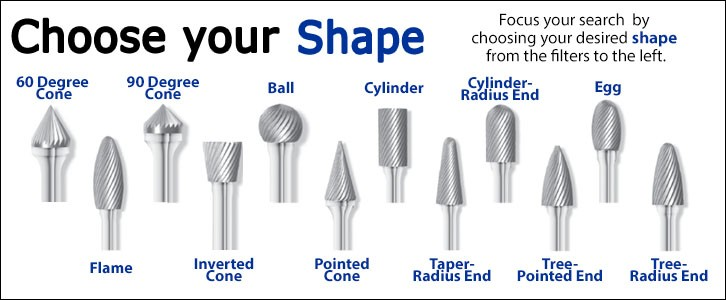

Shapes of Carbide Burrs

The following is a list of the most frequent shapes of carbide burrs:

•
• Cylinder end-cut shape

Cylinder end-cut shape possesses a flat end and is useful for working on materials that have right angles as well as eliminating features. In the process of completing contours on materials, a popular solid carbide burr. Flat surfaces are removed from the majority of materials. Carbide cylindrical form end cut burs may be used for either end or side cutting due to their versatile nature. Deburring and polishing flat bottom holes and slots are two common applications for them.

• Cone shape

Deburring gear teeth, heat exchanger fan blades, inner bevel edges, and internal pipe edges are some of the applications for which cone-shaped carbide burrs are developed. Exactly the same function as a countersink, and also chamfers the inside of holes on purpose.

• Taper shape

The removal of round features from a workpiece results in a product that is more seamless. A practical instrument that is able to access restricted locations and machine material surfaces

• Flame shape

When cutting materials with round edges, use a carbide burr shaped like a flame. The flame form of carbide burrs is intended for use in deburring and polishing elliptic surfaces on steel dies, forgings, castings, and metal patterns.

• Tree shape

like a tree in appearance but with a sharp tip at the top. The round edges are ground by a series of carbide burrs in succession. This form makes it possible to easily access lengthy, tight locations that are inaccessible with the majority of the other shapes. Deburring and completing the deep contoured surfaces of steel dies, moulds, and metal patterns are the primary functions that Tree Shape carbide burrs are intended to do. They can also be used to restore damaged places on dies that were caused by slugs.

• Oval shape

As you continue to work on your project, this perfect carbide burr efficiently clears round edges on the workpiece that has been handed to you. Oval-shaped carbide burs are used for deburring and polishing curved surfaces in steel dies, forgings, castings, and metal patterns. These burs are constructed with an oval cross-section. They are utilized for the process of treating difficult fillet welds.

• Ball shape

Carbide Deburring round bottom holes, curved slots, and curved metal and material surfaces are some of the applications for which ball-shaped burs were devised. In addition to that, you may use them to widen or lengthen tiny holes so that you can treat hard fillet welds. The smooth machining of all round edges of workpieces, as well as the preparation of workpieces for brazing, is made possible by the ball shape..

Applications of Carbide Burrs

The solid carbide burr performs exceptionally well, which is to the advantage of several industries. The HUANA solid carbide burr possesses a special strength in addition to other remarkable characteristics. It helps maintain uniformity when cutting, deburring, removing material, shaping, and polishing, among other processes.

• Shaping

When shaping stone, hardwood, and other materials, having a strong carbide burr with sharp flutes manufactured in a variety of cuts gives you an advantage. When it comes to making forms that are recognizable from one project to the next, industries select HUANA carbide burr.

• Grinding

Carbide Burrs are also frequently used in the process of creating artworks like as sculptures. This is one of its more prevalent applications. In addition to this, they offer cutting movements that are devoid of vibrations. The handle is made of chrome steel with a high degree of durability. Our instruments are used in the grinding of materials in industries all over the world since we are among the leading makers and suppliers of carbide burr. Grinding is made incredibly straightforward and convenient using a carbide burr set, even when working with tough materials. The natural composition of cemented carbide is one that possesses both great strength and outstanding density. This suggests that tough metals or materials won’t cause the carbide burr to become damaged when it’s used to cut them. Because of the qualities of the HUANA carbide burr, it is able to cut through any kind of material and any kind of metal. The flutes are equipped with very high cutting efficiency.

• Cutting

Before moving on to additional processes, such as the manufacturing of components, important things that industries may do with materials include. Your cutting work on projects can be simplified with the help of a carbide burr since it produces accurate cuts. One particular form of carbide burr rotates very quickly, and the sharp flutes are able to provide the traditional cut when used with die grinders. Because of how quickly and efficiently it cuts, those who have cut with carbide burrs in the past have never experienced a movement in their position.

• Deburring

The use of a carbide burr can also significantly alter your workpiece. The majority of end users smooth materials by deburring them, which involves eliminating burrs. Burrs are ridges that are left on materials following operations such as cutting, drilling, shaping, etc. They will make it difficult for you to work on your piece of equipment unless you deburr it.

• Enlarging Holes

The HUANA carbide burr is able to drill through strong materials such as concrete, drywall, and other metals. The carbide burr bits that we produce are the result of three collected cuts. Drilling is possible with a single cut solid carbide burr because it has a unique up cut that can dig bigger chips. This enables for more efficient drilling. It is possible to make the holes physically larger or to deepen them further.

• Applied to a Variety of Materials

Burrs made of tungsten carbide may be used on a wide variety of materials, including aluminium, steel, and forged iron. Carbide burrs for metal may be purchased in a wide variety of sizes and forms, including those that are round, cylindrical, or oval and have variable diameters.

• Carrying Process

Carbide burrs can also be utilized using the carrying method. Carrying is a procedure that improves the quality and amount of the gas flow in an interior combustion engine by adjusting the gas intake ports and, as a result, the exhaust ports. Carrying helps the quality and quantity of the gas flow.

• Increases Engine Performance

In order to improve the performance of the engine, careful and meticulous attention is paid to the movement of the carbide burrs in the head. In theory, abrasive polishing has an effect on fuel flow, and in the end, the transfer process is what’s responsible for the high power output of modern engines.

• Hard Material Chopping

The versatility of carbide burrs allows them to be used for cutting a wide variety of materials, including various types of stone, wood, steel, aluminium, brass, and bronze.

Advantages of Carbide Burrs Usage

The following is a list of the several advantages that are linked with using carbide burrs:

• Carbide burrs have a machining efficiency that is approximately 10 times that of a tiny grinder wheel with a handle and ten times that of a manual file. This compares to the manual file, which has a machining efficiency of one.
• a rate of stock removal that is noticeably superior than that achieved with burrs using a normal cross cut.
• Its extremely high stock clearance rate on critical items results in significant time and cost savings.
• Work that is not only more comfortable but also less noisy and vibratory.
• Carbide of high quality guarantees a longer service life, which is beneficial for businesses that use their machines for lengthy periods of time.
• Efficient: The removal of burrs and scrap is sped up significantly by using double-cut grooves rather than traditional metal burrs. Higher RPM cutting speeds are possible because to the extreme heat tolerances of the material. The length of each manufacturing cycle is shortened when the cutting speed is increased.
• They are able to withstand the harshest and most difficult materials without suffering any degradation in quality.
• Carbide burrs may be used in a wide variety of applications due to their adaptability and versatility.
• In order to reduce the amount of dust pollution, the burrs have replaced the little grinding wheel with a handle.
• When treating mould cavities with a high level of precision, using carbide burrs helps generate results that are of a higher quality.
• Carbide burrs have a durability that is ten times more than that of high-speed steel tools, and they have a durability that is two hundred times greater than that of tiny grinding wheels.
• Utilizing carbide burrs is not only easy and straightforward, but also risk-free and dependable.
• Carbide burrs are versatile tools that may be used to treat a wide variety of materials, including cast iron, steel, carbon steel, stainless steel, marble, jade, copper, aluminum, and alloy steel, among other things.

How to Handle Carbide Burrs: Safety Procedures

Constantly improving your working environment begins with taking precautions to protect both yourself and the solid carbide burr. If you take the appropriate safety precautions, you may prevent mishaps that involve both you and the instrument, as well as damages to both of them. When precautions are taken, unfortunate events like accidents, diseases, and even deaths can be avoided, along with a host of other avoidable disasters.

Take into account the following precautions before to and during the operation:

• If you want to keep your solid carbide burr in good condition, make sure the work material is firmly fastened in a sturdy workstation. Additionally, you protect yourself from harm.
• Always check to see that the burr shank you are using has been properly placed into the collet and that the collet is securely clamped.
• Place the carbide burr’s shank in the chuck of the air tool in the right orientation and ensure that it is securely secured there.
• When dealing with the material, the carbide burr doesn’t get caught on anything or become jammed. Because of this, the flutes become less sharp over time because they chip away.
• Keep the carbide burr moving and don’t let your mind wander from the material you’re working on. Also, make sure to wear protective gear that covers your eyes, face, and hands.
• Because to the increased gravity of the carbide burr, more caution is required while dealing with big materials.
• Sometimes the carbide burr gets hotter, which causes twilight and mist to appear. They might inflict severe damage if they were to be ingested, breathed in, or landed on the skin or eyes. Always proceed with extreme caution.
• Places with proper ventilation should be used for the project’s work.

Conclusion

Based on the description provided in this guide, it would appear that the carbide burr provides industries with multifunction qualities that are suitable for projects. They make the work involved in particular projects considerably easier to complete. Carbide burrs are made by HUANA to be extremely versatile, allowing them to perform more than one purpose..
