In the realm of cutting operations, the carbide end mill is one of the most fundamental propositions. Carbide end mill wear is something that has to be defined and understood in order for cutting tool producers and users to have any hope of extending the life of the carbide end mill. In addition, the modern coating technique for end mills, which includes the use of novel alloying elements, offers an efficient method of greatly enhancing productivity while also significantly extending the useful life of end mills. Carbide end mills provide superior cutting performance, a long tool life, and excellent process security for demanding parts manufacturing in industrial categories such as aerospace, medical, mold and die, and power generation. The specific micro-grain carbide structures, optimized flute lengths, specialist edge honing, and wear-resistant coatings that are included into these end mills are directly responsible for the excellent quality and low cost production benefits that they provide.
What exactly is it about working in this industry that gets us so incredibly pumped up? The ever-evolving applications, the persistent development of new materials that need to be machined, the ever-expanding capabilities of the machines, and a great number of other technical challenges are to blame.
Are you looking for carbide end mills from a variety of brands that are now available in Europe like YG-1, Kennametal, ZCC, Water, and SECO? However, you do not know where to start your search? We have compiled a list of the most popular carbide end mills sold in the United States of America to make it simpler for you to select the one that is best for you.

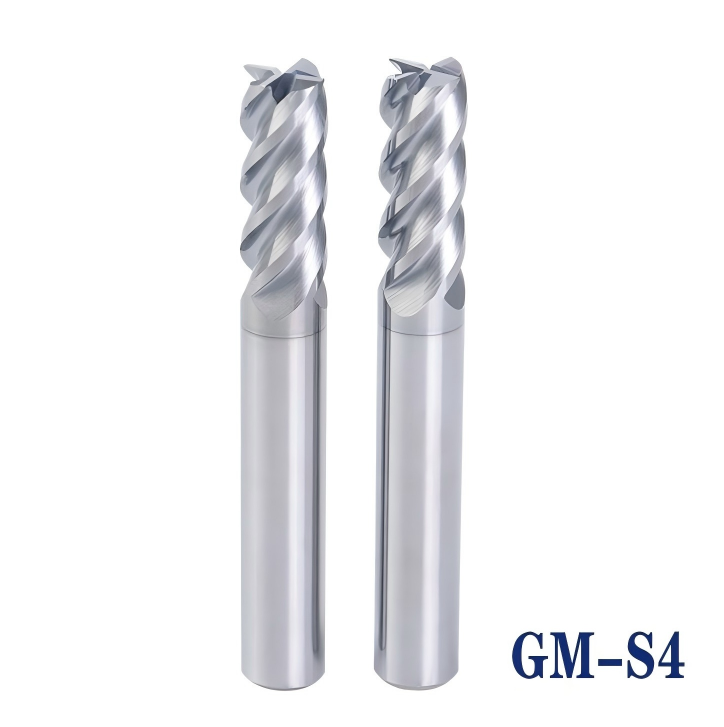

- GM End Mill, Which Is 4Flute End Mill
GM end mills, also known as 4-Flute end mills, are utilized for the grinding of new ultra-fine fine tungsten steel bar, which requires high rigidity and toughness. GM end mill, also known as a 4Flute end mill that is suitable for general use and is coated with Pilates (gray smoke). It has a wide range of applications, such as high-efficiency machining, which can be achieved in a variety of steel processing, including processing of 45 steel, low carbon steel, pre-hardened steel, and stainless steel. It also has a wide range of applications in common steel machining. Side milling and shallow groove machining are two applications that lend themselves particularly well to its use. Cutting is made much simpler and quicker with the right combination of a sharp cutting edge and the strength of the tool, which also helps to prolong the life of the tool. The GM end mill, which is a four-flute end mill, is versatile enough to be used for rough machining with a high rate of metal removal as well as finish machining with a high level of surface quality.
It has a minimal diameter of 0.3mm, making it suitable for cutting even the tiniest of components. Because the GM end mill, which is a 4Flute end mill, uses an excellent new blade shape, the surface of the end mill is smooth and it is not easy to collapse. This helps to enhance the rigidity of the tool by taking into account the rigidity of the tool and chip removal performance, which in turn makes the cutting tool and chip more stable. The GM end mill, which is a 4-Flute end mill, has a round handle, chamfering, is easy to use, and increases the performance stability. “4F” has a cutting corner that is sharp and is appropriate for a right angle groove of 90 degrees, and “4E” has the cutting edge strength The cutting edge of every end mill has undergone a specialized sharpening procedure.

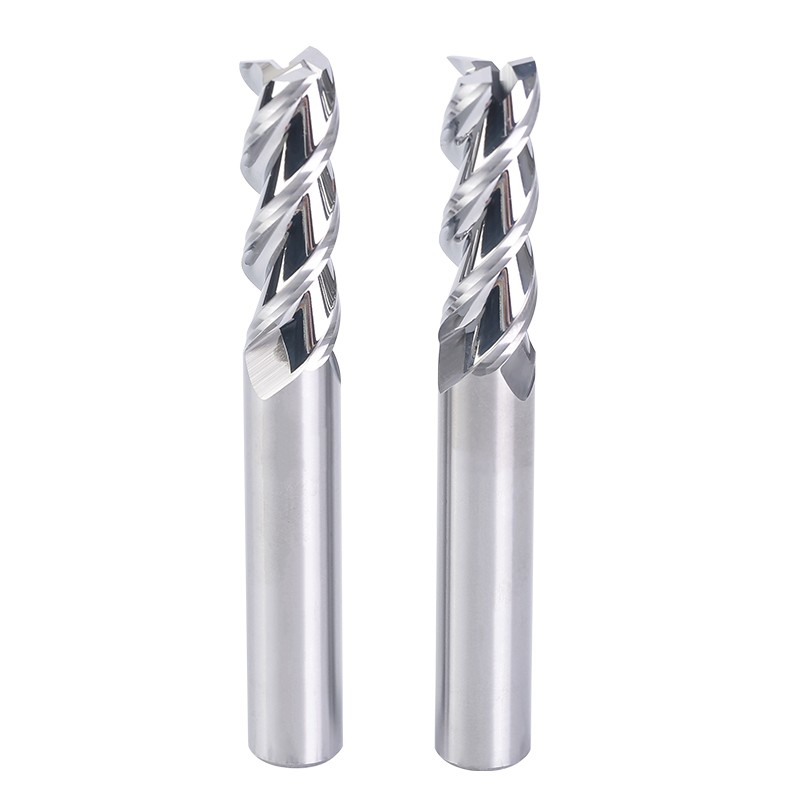

- For Polishing Aluminum Milling Cutters
Due to the soft and “sticky” nature of aluminum, particular geometries and properties of a carbide end mill are necessary for effective machining. For this reason, several cutting tool manufacturers provide end mills that are particularly developed for aluminum. To remove a chip from the parent material while polishing aluminum, milling cutters with a sharp edge and high rake angles are required. Warner uses a 45-degree helix angle design, which is more suited to cutting and produces a finer finish. A high helix angle, often approximately 45 degrees, is preferred. A 45-degree helix angle in polishing aluminum milling cutters helps move chips up and out of the cutting zone while also producing an outstanding surface finish. The tilt also serves to minimize the shock at the cut’s entry, resulting in a smoother, quieter cut.
A greater helix angle also lowers tool deflection and carries tension vertically through the spindle rather than horizontally. It also minimizes the amount of torque required and the quantity of heat created. Chip evacuation is also improved, albeit the reduced flute spacing may create buildup when cutting sticky materials or slotting operations. Difficult-to-machine materials have a lower helix because maximal edge strength and stiffness are required for effective machining. Straight flutes may quickly collect edge buildup, resulting in excessive chatter. In increasing flute angles, chip load is discharged gradually over the full flute length. As a result, the cutting force is more uniform, with less noise. Higher helix for polishing aluminum milling cutters results in a finer finish. The 45° helix angle in polishing aluminum milling cutters greatly reduces side loading and allows for peripheral machining thin wall sections with much less deflection.
For polishing aluminum milling cutters are manufactured with a DLC coating that is very resistant to wear and with a specific sharpening that allows for getting a very sharp edge designed for better finish and obtain cutting surfaces with a high level of brightness or transparency depending on the material of the work piece. At the same time, it has a tip protection C angle. For polishing aluminum milling cutters are manufactured with a DLC coating that is very resistant to wear and with a specific sharpening that allows for getting a very sharp edge designed for better finish and cutting surfaces. For polishing aluminum milling cutters are manufactured with a DLC coating that is very resistant to wear, and with a specific sharpening that allows for getting a very sharp edge designed to cutting and better finish. These characteristics allow the cutters to obtain better finish and more conducive cutting simultaneously. The application of DLC coating on for polishing aluminum milling cutters, which are then used for polishing, has the potential to extend the useful life of end milling cutters by a factor of two to three. The one-of-a-kind DLC coating on for polishing aluminum milling cutters provides remarkable adhesion and resistance to welding, in addition to lowering the cutting friction that would otherwise be present. Slotting and contouring are two examples of procedures that need rapid chip evacuation, and this permits steady machining in those processes.
- Variable Helix Angle End Mill
The changeable helix angle of the cutting tool is a feature that is often neglected, despite the fact that the result of a machining process is determined by a number of different parameters. An end mill’s helix angle is determined by the angle that is produced between the centerline of the tool and a straight line tangent along the cutting edge. This angle is measured in degrees. A helix angle that is greater than or equal to 40 degrees will wrap around the tool “faster,” while a helix angle that is less than or equal to 40 degrees will wrap around the tool “slower.” When doing machining work, machinists often take into consideration the material, the tooling size, and the number of flutes on an end mill before making their selection. In order to contribute to effective chip evacuation, improved part polish, increased tool life, and decreased cycle times, the helix angle must also be taken into consideration.
End mills with a variable helix angle are readily available in Europe. These end mills are optimised for machining high-temperature materials such as stainless steel, titanium alloys, nickel alloys, and other high-temperature materials. They also have exceptional performance in steels that are difficult to machine, including stainless steels, tool steels, and difficult-to-machine steels. Chatter and harmonics are both reduced by about 34 degrees when using a variable helix angle end mill, which also speeds up the rate at which material is removed. The angle at which the cutting edge of an end mill penetrates the workpiece may be controlled by adjusting the variable helix angle of the tool as it spins. The helix angle determines how gradual the entrance of the cutting flute will be, and the greater it is, the more gradual it will be. This results in a transition that is more seamless when the cutting flute approaches the axial depth of cut that is required. There are also end mills with a variable helix angle, meaning that each flute will have a unique helix angle; this is a feature that is highly beneficial when milling at a high efficiency. Chatter, often known as noise and vibration, is something that frequently occurs in certain applications. Utilizing variable-helix end mills in Europe is one way to significantly cut down on chatter. When it comes to production machining, high-performance machining, and machining of materials that are difficult to process, such as heat resistant super alloys (HRSA) and stainless steels, the variable helix end mill is the tool of choice.

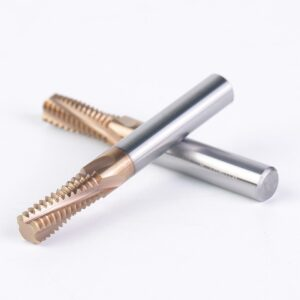

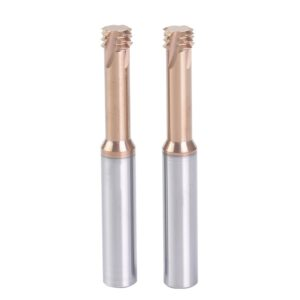

- Carbide Thread Milling Cutter
Carbide thread milling, a basic metalworking method for creating threads, is often the operation of choice when dealing with difficult-to-machine materials such as titanium, tool steels, stainless steels, toughened steels, and other super alloys. Since quite some time ago, thread milling has been used in the automotive and energy sectors; but, in recent years, its popularity has been expanding in the aerospace and medical industries. In most cases, big workpieces for the aerospace sector and tiny workpieces for the medical industry are the ones that benefit from its use.
When it comes to selecting the appropriate carbide thread mill, there are a lot of factors to consider, such as hole size, cutting parameters, and cycle durations, as well as the kind of coating that is applied, whether coolant-through or flood coolant is used, and the tool design and size. Instead of flooding the region with coolant, some designs for solid-carbide and indexable thread mills, which are used to generate big threads, may deposit coolant directly on the cutting edge by way of coolant-through channels.
Carbide thread Milling cutters provide applications in three different tooth configurations: full teeth, single teeth for deep holes, and complete teeth. Solid carbide tools are also available. Carbide thread milling cutters are instruments that are meant to cut threads by milling, and they are used in Europe. On numerically controlled machining centers (NC) that feature simultaneous, triaxle control, and helical interpolation capabilities, carbide thread milling cutters are used. When compared to general tapping, thread milling is more stable and has less cutting condition constraints in terms of chip management and coolant lubricity. General tapping is also more time-consuming than thread milling.
In order to use carbide thread milling cutters, a machining center that is capable of helical interpolation is required. Helical interpolation in turn needs three axes of simultaneous movement. Interpolation around a circle is performed by two of the axes, while the third axis travels in a direction that is perpendicular to the circular plane. This functionality is standard on CNC machines that were manufactured during the previous ten to fifteen years.
The vast majority of thread milling tools, whether solid carbide or inserted, are multi-toothed. Instead of being placed in a helical pattern like a tap, the teeth are aligned in a parallel fashion. Thread milling cutters with three teeth can complete an entire turn around the hole while cutting the full depth of the thread. A thread milling cutter with whole teeth is able to cut threads with a consistent pitch over a variety of sizes. This is due to the fact that the diameter is established by the CNC toolpath rather than the tool itself (as with a tap). Because all of those peaks and valleys are being cut at the same time to make the thread, the full thread milling cutter can generate the thread very quickly.
A single teeth thread milling cutter has the benefit of being able to cut any diameter as well as any thread pitch or range of thread pitches. A single tooth thread milling cutter, on the other hand, can only cut one thread in a single pass and must go around the hole as many times as there are threads. Thread milling cutters with single teeth are intended for threading in hardened steels and difficult-to-machine materials. Its left-hand spiral design is suitable for climb milling from the top of a thread to the bottom of right-hand threads. These single-tooth carbide thread milling cutter designs are less productive in terms of thread creation speed, but they provide greater adaptability in terms of performing various diameters and varied pitches rather than having several taps or a thread mill tailored to a given pitch.
In Europe, a thread milling cutter with 3 teeth cuts a thread using helical interpolation. Helical interpolation entails moving three axes at the same time. The X and Y axes move in a circle, whereas the Z axis travels in a straight line. This enables the same thread mill to cut both right and left-hand threads as well as a wide range of thread sizes (of the same pitch). All thread mills are manufactured of high-quality submicron carbide and are available with and without an ALTiN+ coating. They are built for maximum performance and honed on cutting-edge CNC tool-and-cutter grinders.

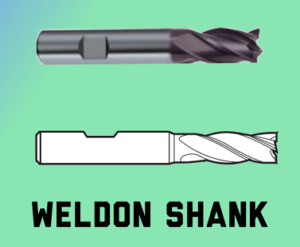

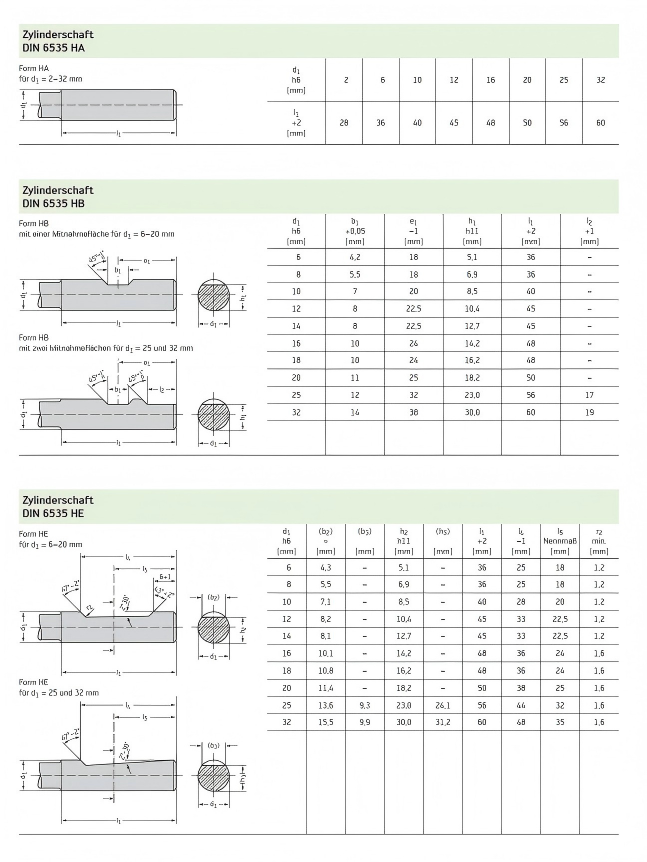

IW Weldon Shank
A Weldon flat is a flat portion on the shank of a tool. When inserted into a Tool holder, the flat on the shank is kept in place by set screws inside the holder’s body. When cutting with this flat, a set screw firmly retains the tool and stops it from turning. Weldon shanks provide excellent pull-out protection owing to the set screw lying flat in the recessed shank.
IW Weldon shanks are engineered to meet the most stringent requirements. For the most accurate cutting operations, use a Weldon shank. Simultaneously, shank for use in high speed steel, cast iron, and nonferrous metals. The shank is compatible with the majority of electric drills. Weldon shank, fits all die grinder brands. For extended tool life, the Weldon shank is composed of high grade tungsten steel. Electric drills may be utilized with the Weldon shank. Weldon Shank is suitable for use with most small magnetic drill presses and large magnetic drill presses fitted with the appropriate arbor.
Top End Mill Brands in Europe
- YG-1
YG-1 Europe is a division of a global firm known for being a pioneer in the invention and production of precision cutting tools. YG-1 has manufacturing sites all throughout the world, including those in the United States. The company, which was founded in 1981, has over 80,000 distinct types of cutting tools in its inventory. Its main markets include volume drill, tap, end mill, spade drill, and rotary tooling. The specialist coating research laboratory at YG-1 is in charge of improving tool coating technology in order to enhance the overall performance of the tools. The Centre’s aim is to develop the most effective coating solution for each product.
- Kennametal
End mills from Kennametal, one of Europe’s premier manufacturers, are available in a broad range of sizes. Kennametal End Mills are designed to perform consistently even in the most demanding environments. Kennametal end mills give the greatest material removal rate (MRR) as well as remarkable durability, regardless of the material you’re cutting, whether it’s aluminum, titanium, stainless steel, or anything else. Kennametal End Mills can run for longer periods of time, cut faster, and mill with more precision.
- ZCC
The ZCC-Group includes Zhuzhou Cemented Carbide Cutting Tools (ZCC), which is based in Zhuzhou, Hunan in the People’s Republic of China. It has grown to become one of the world’s top carbide producers, with over 2,000 workers engaged in carbide product manufacturing employing cutting-edge technology and highly trained personnel. ZCC manufactures high-quality, high-performance cutting tools using cutting-edge manufacturing technology. Carbide indexable inserts (coated and uncoated), indexable inserts made of cermet, CBN, PCD, and ceramics, solid carbide tools, tool holders, and milling bodies are all available. Walter is a long-term and dependable partner in the worldwide metal cutting sector.
- Walter
Walter provides a broad assortment of milling tools in Europe as a producer of high-quality end mills and indexable insert milling cutters, providing you with an efficient and high-performance solution for every metal milling demand. For use on CNC-controlled milling and machining centers, as well as traditional milling machines, in both large and small batch quantities.
- SECO
SECO is a global producer of complete metal cutting solutions for milling, stationary tools, hole making, and tooling systems. They have been more than simply a cutting tool supplier for almost 80 years. They create and offer the technology, processes, and services that manufacturers in Europe rely on to optimize production and profitability.
If you are looking for Tungsten Steel Milling Cutters, contact HUANA!
Tungsten steel milling cutter is a tungsten steel instrument. It is mostly utilized in CNC machining centers and CNC engraving machines. Tungsten steel milling cutters are very necessary for the coating’s high temperature and heat endurance. Tungsten steel milling cutters are often employed, as is high-speed processing.
For almost 15 years, HUANA has specialized in tungsten steel milling cutters. More than $3 million in conventional items are on hand. The quality is consistent, and OEM is also an option. It is your perfect companion.
Conclusion
All of the hot-selling products in Europe are mentioned above, and you may choose the carbide end mills or products based on the attributes that best fit your needs. It is my aim that this article will help you choose a hot selling product on the market in European countries such as the UK, France, Spain, and Russia that is suited for your needs.
