Milling cutters are multi-toothed rotary cutters, each of which is comparable to a turning tool mounted to the revolving face of the milling cutter. Milling cutters are used to mill materials such as wood, metal, and plastic. The cutting edge is longer, there is no empty stroke, and the Vc is greater, all of which contribute to a better level of productivity. There are several kinds of milling cutters, each with its own unique structure and a diverse selection of possible uses. Milling cutters may be broken down into three primary groups based on the types of work they are used for: flat milling cutters, milling cutters that are used to machine grooves, and milling cutters that are used to shape surfaces.

Milling is a way of cutting workpieces using a rotary tool with many cutting edges. It is a very effective approach. During the process of the work, the tool rotates (this constitutes the primary motion), the workpiece moves (this constitutes the feed motion), the workpiece itself can be fixed, but the tool that is spinning must also move (both the main motion and the feed motion). Milling can be done with either horizontal or vertical milling machines, as well as with massive gantry milling machines. These might be conventional tool machines or numerically controlled tool machines. Both of these options are possible. machining performed using a rotary milling cutter as the primary cutting tool. Milling is often performed on a milling machine or a boring machine, and it is well-suited for the processing of planes, grooves, a variety of forming surfaces (such as flower milling keys, gears, and threads), and unique mould forms.

A Brief Overview of Milling Cutters

Milling cutters are designed to cut away material from a workpiece. This is its primary function. Having said that, milling cutters do not comprise a solitary blade by themselves. Milling cutters often have more than one blade, as contrast to lathe cutters, which typically only have one. Lathe operations, such as turning, are accomplished using the lathe. The milling cutter removes material from a workpiece by scraping against it while it spins against the workpiece.

Milling cutters are often built of tough materials that are able to resist high stress without breaking or being damaged in any other way. Milling cutters are also known as milling cutters. For instance, a covering of polycrystalline diamond can be seen on milling cutters very frequently (PCD). PCD-coated milling cutters are said to have a lifespan that is up to one hundred times longer than its uncoated equivalents, as stated by Wikipedia. PCD-coated milling cutters have the benefit of being able to withstand temperatures up to 1,112 degrees Fahrenheit, but this comes at the cost of not being able to utilize them in environments with temperatures higher than this.

Now, let’s take a look at some conventional milling cutters as well as some unconventional milling cutters, as well as the uses for each of them.

Conventional Milling Cutters

When it comes to cutting materials using a mill, there are two main methods available: conventional milling and unconventional milling. The interaction between the rotation of the cutter and the direction in which the material is being fed is what differentiates these two approaches. The cutter in a conventional mill spins in the opposite direction as the feed when the mill is operating. When cutting, the conventional method, known as conventional milling, is the method of choice because it eliminates backlash, also known as the play between the lead screw and the nut in the machine table.

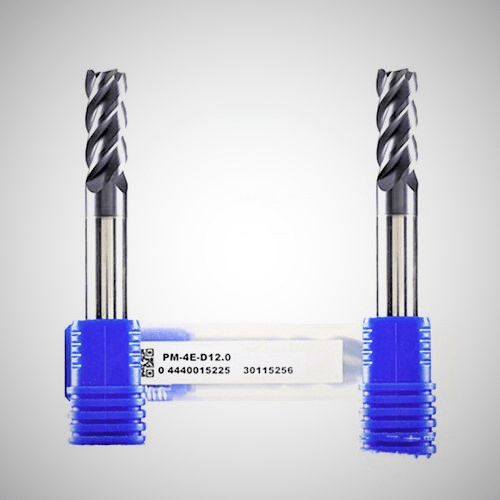

  • Flat End Milling Cutters

Flat end milling cutters are also referred to as “flat end mills” in some circles. These mills have sharp edges that can produce an angle of exactly 90 degrees. They might have a single end or a double end, and they can be formed of either solid carbide or high-speed steel manufactured from a variety of different compositions.

The end mill is one of the most common types of flat end milling cutters, and its primary usage is in milling operations that are performed in industrial settings. End mills and milling bits are not interchangeable in terms of the applications they are used for, the geometry they employ, or the manufacturing process. It is important to keep in mind that flat end milling cutters can be mounted on three to five axes depending on the items that are being milled. It is also possible to add extra attachments to the end mill machine in order to expand its range of applications. If you choose to use flat end milling cutters, you will have the option to place the milling table in a variety of ways, and you will be able to cut the parts in either the vertical or horizontal direction because of the presence of vertical and horizontal spindles.

The automobile and aviation sectors are both potential users of flat end milling cutters that have 4 axes. The presence of a turnaround table sets this particular type of milling cutter apart from the others. And last, we have the 5-axis flat end milling cutters. This particular sort of cutter is made up of three linear axes and two rotating axes, all of which are customizable depending on the model that is chosen. For the purpose of processing, cutting, and shaping various kinds of mechanical parts, either on their own or in series, a flat end milling cutter is the tool of choice.

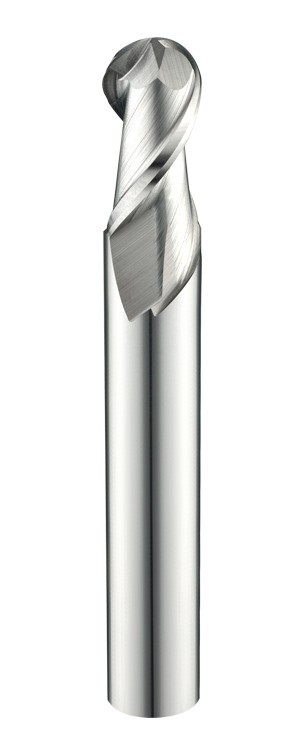

  • Ball End Milling Cutters

A ball end-milling cutter is very similar to a slot drill, except the ends of the cutter are hemispherical rather than flat. This type of cutter employs ball end mills. As a consequence of this, they are appropriate for cutting any three-dimensional contoured forms into the machining centers, such as dies and moulds. On the shop floor, they are sometimes referred to as ball mills, despite the fact that this phrase more properly refers to something else. A ball mill is a type of grinder that can grind and combine a variety of materials for use in a variety of applications, including ceramics, paints, and more. Regardless of the situation, you will most certainly overhear machinists using the word. It is also possible to create radiuses between perpendicular faces using a ball end milling cutter, which helps to minimize the amount of stress concentration. It is important not to mistake the ball end milling cutter with the bull nose cutter since the latter has a corner radius that is significantly larger. Because it is half the diameter of the ball mill, a cutter with a diameter of 20 millimeters would have a radius corner measuring 2 millimeters.

Ball end milling cutters may be customized to a broad variety of applications by combining a number of different design elements into its construction. Because of its design, which incorporates a big core, neutral cutting angles, and a slow helix, in addition to the entire radius and HSM machining processes, these tools may be used for roughing, and they have an exceptionally long life even when used on the most difficult materials. Roughing out softer steels in an efficient and predictable manner requires sharper designs with more chip pocket space and irregular helix patterns. These can be utilized in conjunction with more typical tool paths. As is the case with any other tool, it is determined by the specific component being used and the preferences of the programmer. Be that as it may, there is no denying the fact that the ball end milling cutter mill is a strong ally in the process of machining.

  • Thread Milling Cutter

When compared to more conventional methods of thread processing, carbide thread milling offers significant benefits in terms of processing accuracy and processing efficiency. Additionally, it is not constrained by the thread structure or thread rotation while it is being processed, and it is very simple to adjust the size of the thread diameter. In order to finish the operation of thread milling, the CNC machining center’s three-axis linkage function and either the G02 or G03 spiral interpolation command are used.



Thread milling cutter is a sophisticated tool that has been quickly evolving in recent years. As a result of its great and amazing processing performance, it is becoming more and more extensively adopted by businesses. It has evolved into a strong instrument that businesses may leverage to increase their operational efficiencies and cut the expenses of thread processing. Utilized in the production of moulds; for non-rotating or asymmetric components; high boring diameters; and interrupted cutting.

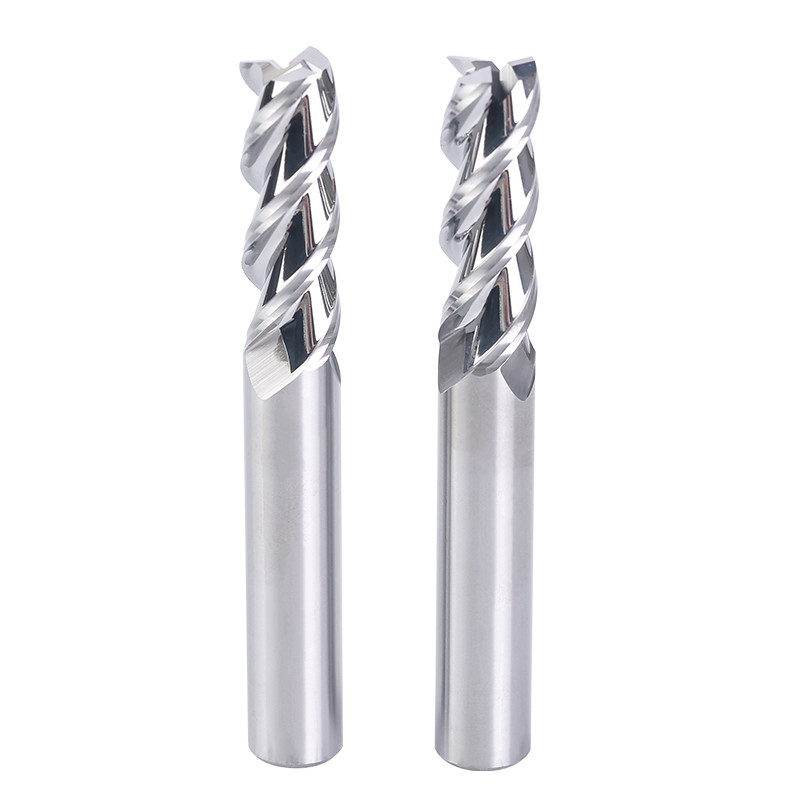

  • Aluminum Milling Cutters

People in numerous industries are becoming increasingly interested of metal and aluminum as their living conditions rise. Aluminum processing is commonly utilized for standard machine tools, engraving machines, and CNC machining centers. Aluminum milling cutters are frequently offered with two or three flutes. With larger flute counts, it would be impossible to remove chips properly at the high speeds possible in aluminum. This is due to the fact that aluminum alloys leave a huge chip, and chip valleys on aluminum milling cutters get narrower with each subsequent flute. Aluminum milling cutters are frequently offered with two or three flutes.

With larger flute counts, it would be impossible to remove chips properly at the high speeds possible in aluminum. This is due to the fact that aluminum alloys leave a huge chip, and chip valleys on aluminum milling cutters get narrower with each subsequent flute. 2 flute aluminum milling cutters have always been the standard option for Aluminum. However, 3 flute aluminum milling cutters have shown to be more successful in many finishing processes, and with the correct conditions, they may even operate satisfactorily as roughers.

Aluminum milling cutters often have greater helix angles than ordinary end mills. Aluminum milling cutter helix angles are commonly 35°, 40°, or 45°. Variable helix tools are also available and are an excellent alternative for decreasing chatter and harmonics while enhancing material removal rates.

  • Round Nose Milling Cutters

The round nose milling cutter may be used in any type of milling machine, including those used for engraving and woodworking. The primary function of a round nose milling cutter is to manufacture planes and grooves, as well as to do other tasks such as shaping work pieces. The round nose milling cutter has a strong construction, which adds to its outstanding performance and extended operational lifespan. Improve the process’s efficiency while maintaining a high feed rate.

The round nose milling cutter has a long service life and is ideal for cutting high-hardness steel. Material The turning tool made using solid carbide and the entire forging process has a high degree of operating efficiency, a long service life, and increased wear-resistance, strength, and stiffness. The antibacterial surface treatment on the round nose milling cutter helps to keep the tool clean. Strong earthquake resistance, which may result in a higher surface polish degree for the workpiece.

Unconventional Milling Cutters

  • T-Type Milling Cutters

T-slots are machined using T-type milling cutters. T-slot cutters are also known as T-type milling cutters, and they are classified as tapered shank T-slot milling cutters and straight shank T-slot milling cutters. This T-slot milling cutter may be used on a variety of mechanical tabletops as well as T-slots on other constructions. It is distinguished by a specific tool for processing T-shaped grooves. Following the milling of the straight grooves, the T-shaped grooves with the appropriate accuracy may be milled at the same time, and the terminal edge of the milling cutter has a sufficient cutting angle. This type of slot milling cutter is often built of a high stiffness and strong alloy, while high-speed steel can be used for general processing of easy-to-cut metals. If the material to be treated has a reasonably high hardness or is difficult to cut, a cemented carbide tool should be used.

The T-type milling cutters produce a lot of heat during cutting, particularly when the cutting speed is high. As a result, the tool material should have strong heat resistance, both at high temperature can still keep a higher hardness, can continue to cut performance; this is a quality of high temperature hardness, also known as thermal hardness or red hardness.

T-type milling cutters must endure a lot of impact during the cutting process, thus the tool material should be stronger, otherwise it is easy to shatter and damage. Because T-type milling cutters are exposed to shock and vibration, the cutter material must be robust enough to avoid chipping and breaking.

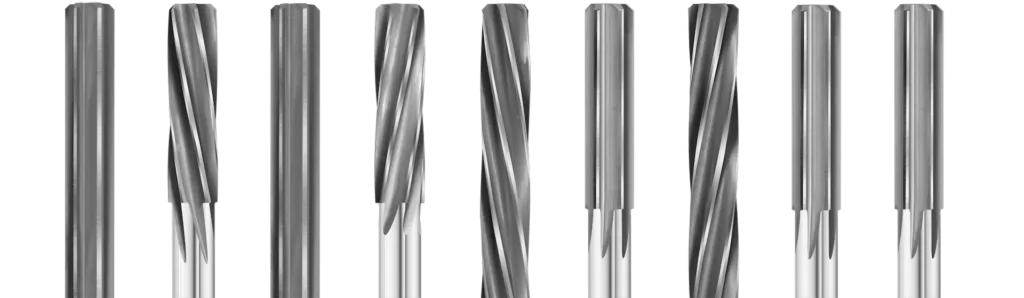

  • Reamers

Reamers are metalworking rotary cutting tools. The process of widening and sizing a hole with a multi-fluted cutting tool is known as reaming. Precision reamers are designed to increase the size of a previously produced hole by a minimal amount while leaving smooth sides. Non-precision reamers are used for basic hole expansion and material removal to deburr. Reaming makes use of an existing hole in the workpiece to remove a tiny quantity of material known as chips. Relative axial and rotational motions between the reamer and the workpiece are involved in the operation. It is commonly performed on a drill press, although it may also be performed on lathes. As the reamer is pushed into the workpiece, a vice, chuck, or fixture holds it securely in place.

A reamer is typically made up of a series of parallel or helical cutting blades that run the length of a cylindrical body. Each cutting edge is ground at a little angle and has an undercut beneath it. Reamers should only be used to remove modest quantities of material to ensure the reamer’s longevity and a great hole finish. The performance of a reamer is determined by various variables, including speed, feeds, and workpiece material.

There are several specialty reamer possibilities. Chucking reamers, which generally have a straight shank and are used for general purpose reaming, automobile reamers, which are used for heavy-duty structural work, and repair reamers, which are widely used in utility and maintenance applications, are the most popular types of reamers.

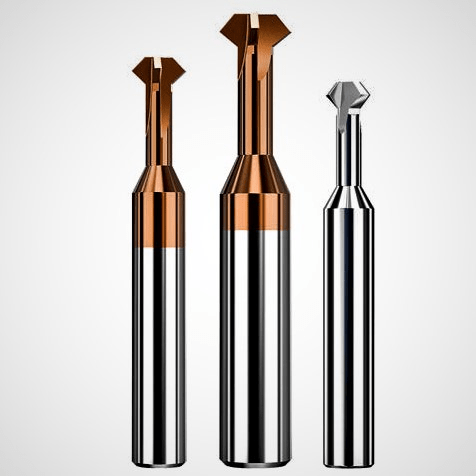

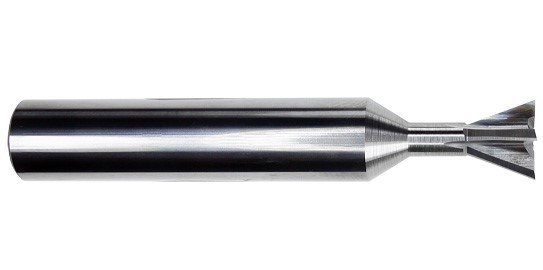

  • Dovetail Milling Cutters

Dovetail cutters are specialized tools that are utilized for the purpose of cutting dovetail angled grooves into a workpiece. These grooves are then utilized for the purpose of fitting or attaching components. They can have a solid construction or holders and inserts added to them instead. There are a variety of end and tip geometry options available for use with dovetail cutters. These options include a square end, a ball nose, a radius tip, and a chamfer tip.

  • Dovetail cutters with square end tip geometry have a square or straight end and do not have a radius, chamfer, or any other finish on the end of the cutter.
  • The “ball nose” on ball nose dovetail cutter tips has a radius that is equal to one half of the diameter of the cutter. For the purpose of cutting female semicircle grooves of radii, this sort of dovetail cutter tip is really helpful.
  • Straight flutes with a ground radius on the very tip characterize the dovetail cutter ends that are referred to as radius-tipped.
  • Chamfer tip ends are distinguished by a piece of the side or the end that is bevelled at an angle. A workpiece will end up with an angled cut and a chamfered edge if these tips are used.

When choosing a dovetail cutter, it is important to take into consideration the sort of finish that will be applied. In most cases, there are two possible finishes to choose from: roughing/hogging and finishing. The machine shape, flutes, and materials utilised in roughing and hogging cutters are designed to facilitate the removal of large amounts of material in a short amount of time. Typically, they are used to manufacture workpieces to a point that is quite near to the finishing dimensions that are wanted. At that point, a finishing dovetail cutter is employed, which results in tighter tolerances and a higher-quality surface finish.

It is essential to grasp the material of the dovetail cutter in order to comprehend the degree of cutting that can be accomplished by the machine. Hard materials such as carbide, cobalt, and diamond are suitable for usage in high-speed applications. On the other hand, materials like as steel are utilized for common metal machining purposes. Micrograin carbide, which is utilized most frequently in applications involving surface finishing, is another material that may be used for dovetail cutters. Ceramic is still another choice.

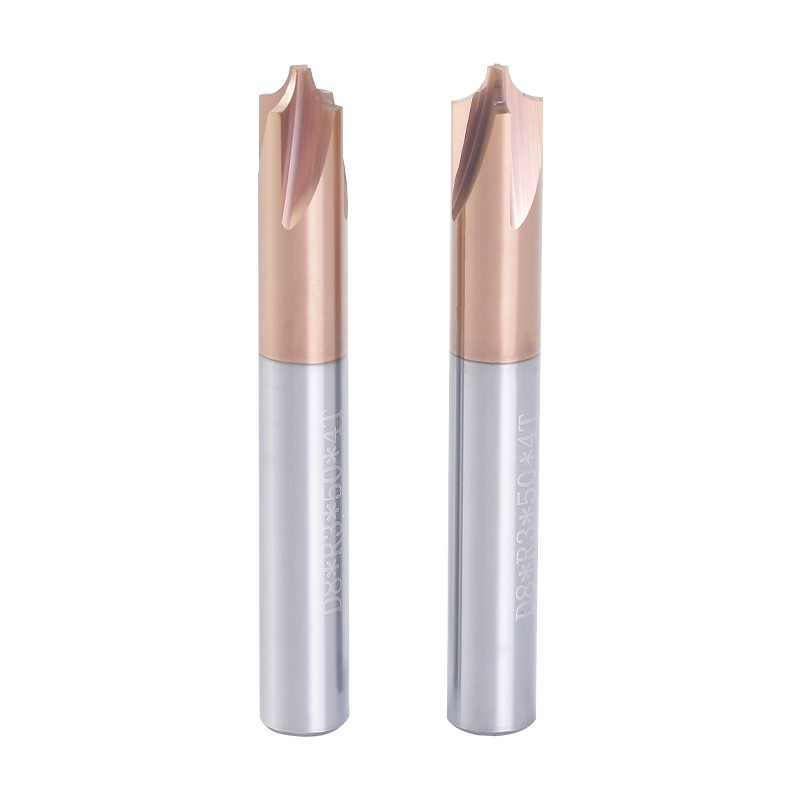

  • Inner R Milling Cutters

The radiating efficiency of the Inner R milling cutter is great. This includes the cutter body, tool bit, superconducting heat pipe and fin, as well as the interface between the cutter body and tool bit. The tool bit of the inner R milling cutter is fitted with a number of sword teeth, and the sides of the sword teeth are fitted with curved sunkenly. One end of the superconducting heat pipe and the fin are attached to each other.

The first passageway and the second channel both intercommunicate with one another, and the superconducting heat pipe receives input from both the first passageway and the second channel. The first passageway and the second channel are both located on the inside of the Inner R milling cutter. The above-mentioned Inner R milling cutter’s radiating efficiency is high sets up superconducting heat pipe in milling cutter’s inside, and superconducting heat pipe is connected with the fin that is located on the cutter body outer wall simultaneously, utilizes superconducting heat pipe’s high -efficient heat transfer performance, the process fin gives off the heat to outside, improvement Inner R milling cutter’s radiating efficiency at last.

Conclusion

The globalization of industry has led to an increase in the utilization of non-standard milling methods, which has led to their increasingly widespread deployment. To enter the high-end market of manufacturing should be the primary focus of the transformation of the economic development mode that should take place in the tool industry. This should be followed by the elimination of the excess capacity of high-consumption and inefficient standard tools, and the vigorous development of modern high-efficiency tools. non-standard milling cutters are in urgent demand in the industrial business, and society would benefit from their use of less resources if they were available. Provide optimum productivity. If you are seeking for milling cutters that are not standard, you should get in touch with HUANA..
