Titanium alloys are renowned for their exceptional properties such as low density, high strength, and excellent corrosion resistance, making them a vital material in industries like aerospace, energy, medical devices, and shipbuilding. Despite these advantages, titanium alloys are notoriously challenging to machine. Their difficult machinability stems from the combination of physical and chemical properties that make them ideal for demanding applications but problematic when it comes to processing. In this blog, we will explore the reasons behind this difficulty, the types of titanium alloys, and the strategies and best practices used to overcome these machining challenges.
1. Types of Titanium Alloys
1.1 Alpha Titanium Alloys (α-Titanium)
Alpha titanium alloys are predominantly made up of a single-phase hexagonal close-packed (HCP) structure at room temperature. These alloys are characterized by excellent high-temperature strength and oxidation resistance. They can operate at temperatures up to 500°C, making them ideal for aerospace components that need to withstand extreme conditions. However, while their performance at elevated temperatures is remarkable, their strength at room temperature is lower compared to other alloys.
The machining of alpha titanium alloys is generally easier than that of other types of titanium. However, they are still susceptible to certain issues such as high tool wear and chip buildup. Examples of commonly used alpha titanium alloys include TA7 and TA8, which are often used in applications requiring good high-temperature strength.
1.2 Beta Titanium Alloys (β-Titanium)
Beta titanium alloys have a body-centered cubic (BCC) crystal structure, which provides good cold-workability and allows for heat treatment to increase strength. This makes beta titanium alloys excellent for applications that require high strength at room temperature. However, beta alloys have poor thermal stability, making them unsuitable for high-temperature applications.
The machining of beta titanium alloys presents significant challenges. They are much harder than alpha titanium alloys, which results in higher cutting forces, tool wear, and thermal buildup during machining. Typical examples include TB1 and TB2 alloys, which are used in demanding applications like structural components in aerospace and military industries.
1.3 Alpha-Beta Titanium Alloys (α+β-Titanium)
Alpha-beta titanium alloys contain both alpha and beta phases, which combine the properties of both types of alloys. These alloys provide a balance of high strength at both room and elevated temperatures, with good plasticity and toughness. The ability to undergo heat treatment further enhances their strength, making them widely used in industries like aerospace, automotive, and medical devices.
Although alpha-beta alloys offer a versatile range of properties, they still present challenges in machining. Their cutting characteristics are more complex than those of alpha alloys, requiring optimized parameters and tool materials. The most common examples are TC1 and TC4 alloys, which are often used in applications requiring a mix of strength, toughness, and heat resistance.
2. Why is Titanium Alloy Difficult to Machine?
2.1 Combustibility of Titanium Chips
Titanium chips, when heated above 600°C, are highly combustible. This poses significant risks during machining, especially in high-speed or high-temperature cutting operations. When titanium chips ignite, they can cause fires in the machining environment, leading to potential safety hazards and operational downtime. To mitigate this risk, effective chip removal and cooling methods must be employed.
2.2 Poor Thermal Conductivity
Titanium alloys have poor thermal conductivity, approximately one-sixth to one-seventh that of steel. This characteristic means that heat generated during the cutting process is concentrated near the cutting edge, resulting in high temperatures in the localized cutting zone. These high temperatures cause rapid tool wear, reducing the tool’s lifespan and requiring frequent tool replacements. Cooling strategies such as flood coolant or high-pressure mist are essential to manage this heat.
2.3 High Chemical Affinity
Titanium alloys have a strong chemical affinity for certain materials, particularly the titanium carbide (TiC) present in carbide tools. This chemical bonding leads to severe tool wear, as titanium tends to stick to the cutting tool material. Over time, this adhesion reduces cutting efficiency and significantly shortens the tool’s operational life.
2.4 Low Elastic Modulus
Titanium alloys have a relatively low elastic modulus, approximately half that of steel. As a result, these alloys are more prone to deformation under machining forces, causing higher friction and heat generation. This can lead to issues such as vibrations and poor surface finish. The workpiece may also experience distortion during clamping, which can negatively affect machining accuracy.
2.5 Cold Hardening
Titanium is highly reactive at elevated cutting temperatures. As it absorbs oxygen and nitrogen from the air, it forms a hard and brittle oxide layer on the surface, known as ‘cold hardening.’ This phenomenon reduces the material’s machinability and increases tool wear. The hard oxide layer formed during machining can also reduce the fatigue strength of the titanium part, which is particularly concerning in industries like aerospace.

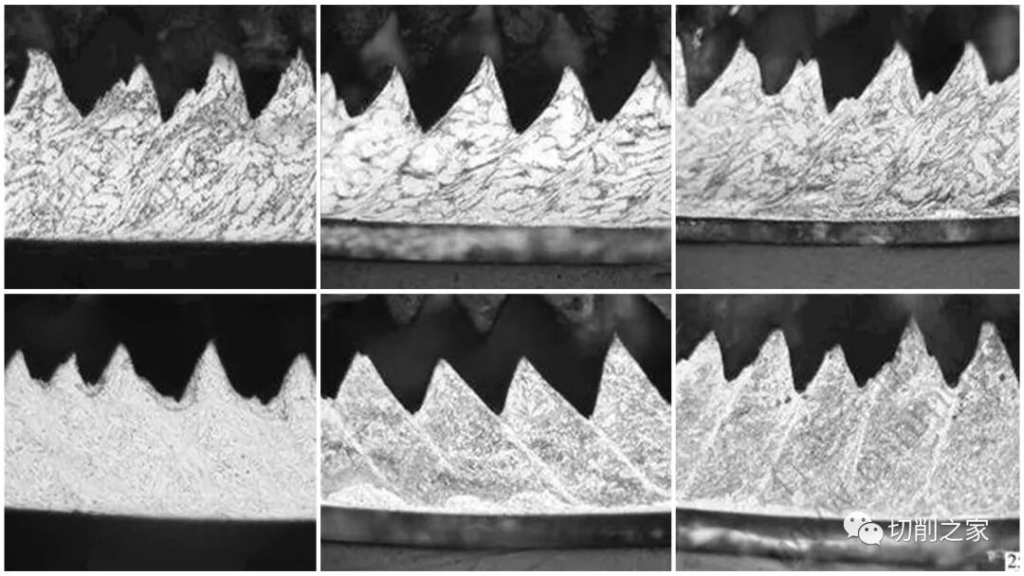

2.6 Short Tool-Chip Contact Length
Due to the chemical reactivity of titanium, the chips produced during cutting tend to break into short, brittle fragments. This results in a very short tool-chip contact length, which causes high cutting forces to be concentrated at the cutting edge. The intense localized heat and forces lead to rapid tool wear and, in some cases, tool failure.
3. Measures to Overcome Machining Challenges of Titanium Alloys
3.1 Choosing the Right Tool Material
Choosing the right tool material is critical to successfully machining titanium alloys. Traditional carbide tools often contain titanium, which increases tool wear. As such, it is advisable to select tools made from materials that do not contain titanium, such as YG-class tungsten carbide (ISO K-class) or specialized tool materials like diamond and cubic boron nitride (CBN). These tools provide superior wear resistance and help extend tool life in the face of titanium’s aggressive machinability challenges.
3.2 Tool Geometry Selection
The geometry of the cutting tool has a profound effect on machining performance. When machining titanium alloys, tool angles should be optimized to reduce cutting forces. The rake angle (γ) and relief angle (α) should be smaller to minimize the cutting force and prevent excessive heat buildup. Additionally, the nose radius should be rounded to avoid tool failure. Standard values for carbide cutting tools are:
– Rake angle (γ): 5° to 8°
– Relief angle (α): 10° to 15°
– Cutting edge radius (re): 0.5 to 1.0 mm
3.3 Optimal Cutting Parameters
When machining titanium alloys, it is crucial to use low cutting speeds, higher feed rates, and larger depth-of-cut values. Lower cutting speeds help prevent excessive heat generation, while higher feed rates improve chip removal and reduce the likelihood of built-up edge formation. The following cutting parameters are recommended for common titanium alloys:
– Cutting speed for TC4 titanium alloys: 26–60 m/min
– Feed rate: 0.1–0.3 mm/r
– Depth of cut: 1–3 mm, ensuring that the depth exceeds the oxide layer for roughing operations
3.4 Cooling and Lubrication
The use of effective cooling and lubrication is essential when machining titanium alloys. Extreme pressure emulsions or high-pressure mist systems should be used to provide adequate cooling. These coolants help reduce the high temperatures generated during cutting and prevent the formation of hard oxide layers. Special care must be taken to avoid the use of chlorine or sulfur-containing coolants, as these can cause hydrogen embrittlement and high-temperature corrosion in titanium alloys.
3.5 Workpiece Clamping
Clamping titanium alloys should be done carefully to avoid excessive clamping forces that can lead to workpiece deformation. It is essential to use rigid clamping systems, and when necessary, auxiliary supports should be added to improve the rigidity of the workpiece during machining. This ensures that the part remains stable and does not experience distortion, which would affect machining accuracy.
4. Data Tables
4.1 Recommended Cutting Parameters for Titanium Alloys
Material | Cutting Speed (m/min) | Feed Rate (mm/r) | Depth of Cut (mm) |
TC4 Titanium | 26–60 | 0.1–0.3 | 1–3 |
TA7 Titanium | 20–40 | 0.05–0.2 | 1–2 |
TB2 Titanium | 30–50 | 0.1–0.2 | 1.5–3 |
4.2 Tool Material Selection for Titanium Machining
Tool Material | Characteristics | Recommended Application |
YG-class Tungsten Carbide | High wear resistance | Suitable for most titanium alloys |
Diamond Tools | Extremely hard, highly resistant to wear | High-precision cutting of titanium |
CBN (Cubic Boron Nitride) | Excellent heat resistance, wear resistance | High-performance machining of titanium |
5. Conclusion
Successfully machining titanium alloys requires an understanding of the material’s behavior and applying strategies to mitigate the issues discussed above. By choosing the right tools, optimizing cutting parameters, and using effective cooling and lubrication methods, manufacturers can achieve high efficiency and precision in titanium machining. With continuous advancements in tool materials and machining technologies, titanium alloys will remain essential for high-performance applications across industries.
