1. The History of Titanium
Titanium, one of the most valuable metals in modern industry, has a fascinating history that began more than a century ago. Although the element itself was discovered in 1791 by the British clergyman and mineralogist William Gregor, it wasn’t until 1910 that the American chemist Matthew Hunter succeeded in isolating titanium metal by reducing titanium tetrachloride (TiCl₄) with sodium. This process became known as the Hunter Method.
Later, in the 1930s, William Justin Kroll developed an improved process by reducing titanium tetrachloride with magnesium, which made commercial production possible. The Kroll Process remains the most widely used method of titanium production today.

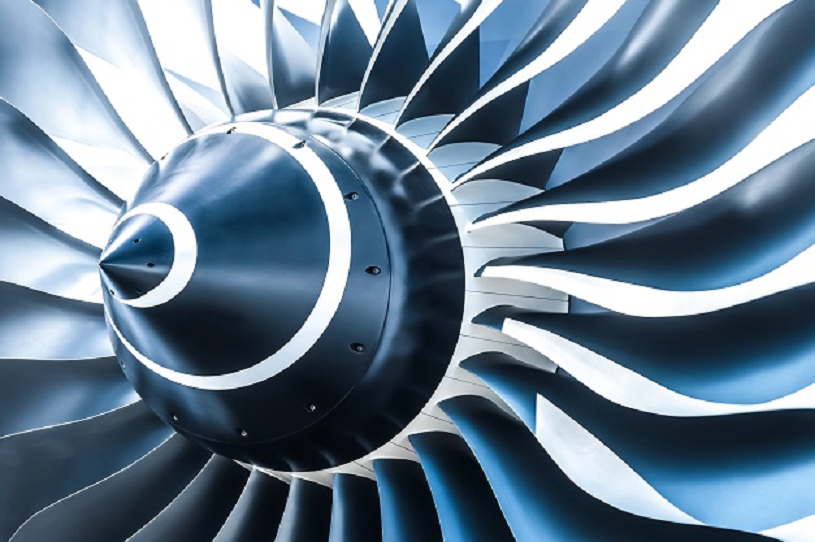

After World War II, titanium gained widespread attention due to its excellent combination of light weight, strength, and corrosion resistance. The metal was first applied on a large scale in military aircraft and submarines, especially in the Soviet Union and the United States during the 1950s and 1960s. By the early 1960s, commercial aircraft manufacturers also began incorporating titanium alloys into their designs.
Interestingly, titanium also plays an important role in medical science. In the 1950s, Swedish scientist Per-Ingvar Brånemark discovered that titanium could integrate with human bone through a process known as osseointegration, paving the way for modern dental implants and prosthetics.
2. What is Titanium?
Titanium, symbol Ti, atomic number 22, belongs to Group IVB in the periodic table. It is a light, silvery-gray metal known for its high strength-to-weight ratio, corrosion resistance, and excellent mechanical properties.
Although titanium is abundant in the Earth’s crust, it rarely occurs in pure form. Instead, it is extracted from minerals such as ilmenite and rutile. Titanium is widely used because of its impressive properties:
High strength and low density: 45% lighter than steel but nearly as strong.
Excellent corrosion resistance: resists attack from water, chemicals, and oxidizing agents.
Good thermal and electrical conductivity.
Biocompatibility: ideal for medical implants.
Approximately 80% of all titanium production is used in the aerospace industry, with the remaining 20% distributed across sectors like defense, medical, and consumer goods.
Titanium forms a thin layer of titanium dioxide (TiO₂) on its surface, which protects it from oxidation and corrosion. This natural passivation layer is the reason for its exceptional durability in harsh environments.
Another important property of titanium is its low modulus of elasticity, meaning it can bend and flex without permanent deformation—an advantage in structural and biomedical applications.
3. Classification of Titanium Alloys
Titanium alloys are broadly classified into three main categories based on their microstructure at room temperature: Alpha (α) alloys, Beta (β) alloys, and Alpha-Beta (α+β) alloys. Each type has distinct mechanical properties and applications.
Type | Microstructure | Main Features | Representative Grades | Typical Applications |
α (Alpha) | Hexagonal close-packed (HCP) | Excellent high-temperature performance, good oxidation resistance, but cannot be strengthened by heat treatment | TA3, TA7, TA8 | Jet engines, heat exchangers, chemical equipment |
β (Beta) | Body-centered cubic (BCC) | High strength, good cold workability, heat-treatable, but poor thermal stability | TB1, TB2, TB6 | Fasteners, landing gear, automotive parts |
(α+β) | Mixed phases | Balanced strength and ductility, heat-treatable, wide application range | TC1, TC4 (Ti-6Al-4V) | Aerospace structures, turbine blades, medical implants |
4. Why Titanium Alloys are Difficult to Machine
Despite their excellent performance, titanium alloys are notoriously difficult to machine. Their unique physical and chemical characteristics create multiple challenges during cutting operations:
High chemical reactivity – Titanium tends to react with cutting tool materials, causing severe adhesion and rapid tool wear.
Low thermal conductivity – Heat generated during cutting does not dissipate efficiently, concentrating at the cutting edge and causing tool failure.
High strength and low modulus of elasticity – Titanium tends to spring back, leading to chatter, vibration, and poor surface finish.
Short chip contact length – Chips easily break into short fragments, creating unstable cutting conditions and concentrated heat.
Tendency to harden during machining – Titanium absorbs oxygen and nitrogen at high temperatures, forming a hard, brittle surface layer known as the “work-hardened” zone.
Flammability – Titanium chips can ignite at temperatures above 600°C, requiring careful heat control.
These challenges mean that machining titanium alloys demands specialized tools, parameters, and coolant strategies.
5. Practical Tips for Machining Titanium Alloys
To overcome the difficulties mentioned above, engineers and machinists must optimize every element of the cutting process—from tool material to cutting conditions. Below are some proven strategies:
(1) Tool Material Selection
Choose cutting tools that do not contain titanium in their composition to avoid chemical affinity. Recommended options include:
Cemented carbides (YG or ISO K grade)
Polycrystalline diamond (PCD)
Cubic boron nitride (CBN)
(2) Tool Geometry
Titanium machining requires specific tool geometries:
Positive rake angle (γ₀ = 5°–8°) for better cutting action.
Large clearance angle (α₀ = 10°–15°) to reduce rubbing.
Small helix angle (λ₀ = -3° to -5°) and approach angle (κᵣ = 45°–75°).
Nose radius (rₑ = 0.5–1.0 mm) for improved strength and finish.
Both rake and clearance faces must be highly polished, with surface roughness ≤ 0.2 µm.
(3) Cutting Parameters
When turning or milling titanium alloys:
Low cutting speed (26–60 m/min for TC4).
Moderate feed rate (0.1–0.3 mm/rev).
Depth of cut (1–3 mm for roughing; must exceed oxide layer thickness).
Using excessive cutting speed will dramatically shorten tool life.
(4) Cooling and Lubrication
Use extreme-pressure emulsion coolant with sufficient flow rate. Avoid sulfur- or chlorine-based coolants if fatigue strength is critical, as they may release hydrogen at high temperatures, causing hydrogen embrittlement or stress-corrosion cracking.
(5) Workpiece Clamping
Because titanium has a low modulus of elasticity, excessive clamping force may deform the workpiece. Use support fixtures or auxiliary backing to improve stability.
(6) Machine Tool Requirements
High rigidity and minimal backlash are essential. Even slight vibration can cause tool chipping. Ensure that all moving parts are precisely adjusted.
7. Conclusion
Titanium alloys represent one of the most important achievements in modern metallurgy. From aerospace to medical devices, they continue to expand their influence in industries that demand high performance under extreme conditions. Although machining titanium remains challenging, advances in cutting tool design and cooling technology have made precision titanium manufacturing more achievable than ever.
With proper understanding and optimized cutting strategies, titanium is not a difficult enemy—but a powerful ally in the pursuit of innovation and quality.
