Runout is one of the most persistent, expensive, and often invisible problems in metal cutting. It quietly erodes tool life, inflates cycle time, and degrades part quality—sometimes even when parts still “meet print.” This guide explains what runout is, why it matters, how to measure it correctly, and the proven steps to reduce it on mills and drills. You’ll also find example datasets, practical tolerances by tool diameter, and visual prompts you can replicate in your shop (macro photos and microscope views) to diagnose runout-driven wear modes.
What Exactly Is Runout?
In simple terms, runout is the variation of a cutting tool’s radius as it rotates. If a tool were perfectly concentric and perfectly aligned to the spindle’s axis, its cutting edges would trace the same path each revolution. With runout, some edges sit farther from the axis than others, so certain flutes “hit” the workpiece more than their neighbors.
Two practical ways machinists talk about runout:
- Total Indicated Runout (TIR): The peak-to-peak difference measured with a test indicator on the tool shank or a ground gauge diameter as the spindle rotates slowly.
- Radial Eccentricity at the Cutting Edge: The offset at the actual cutting radius—this is what truly governs chip load per tooth.
Even tiny TIR amounts matter because chip load is not evenly shared. If one flute protrudes just 0.0004″ (10 µm) farther, it will carry a much higher instantaneous chip thickness than intended, while trailing flutes rub and heat, compounding wear.
Why Runout Hurts More Than You Think
- Uneven chip load = localized wear. One or two flutes do most of the work, fail early, and force premature tool changes.
- Rubbing and heat on under-loaded flutes. They generate thermal damage and built-up edge (BUE), degrading surface finish.
- Dimensional variation & chatter risk. Especially in small-diameter tools, runout amplifies radial forces and vibration.
- Hidden cost. Parts may pass inspection, but cost per part rises due to shortened tool life, slower feeds, and extra deburring.
Acceptable Runout Targets by Tool Diameter
Your “good enough” TIR depends on tool size and operation. The smaller the tool, the tighter the target.
Tool Diameter | General Steel/Alloy (µm / in) | Aluminum (µm / in) | Finishing Ops (µm / in) |
≤ 1 mm (≤ 0.039″) | ≤ 5 / 0.0002 | ≤ 7 / 0.0003 | ≤ 3 / 0.00012 |
1–3 mm (0.039–0.118″) | ≤ 8 / 0.0003 | ≤ 10 / 0.0004 | ≤ 5 / 0.0002 |
3–6 mm (0.118–0.236″) | ≤ 10 / 0.0004 | ≤ 13 / 0.0005 | ≤ 8 / 0.0003 |
6–12 mm (0.236–0.472″) | ≤ 13 / 0.0005 | ≤ 15 / 0.0006 | ≤ 10 / 0.0004 |
≥ 12 mm (≥ 0.472″) | ≤ 15 / 0.0006 | ≤ 18 / 0.0007 | ≤ 13 / 0.0005 |
Root Causes of Runout (and What To Do)

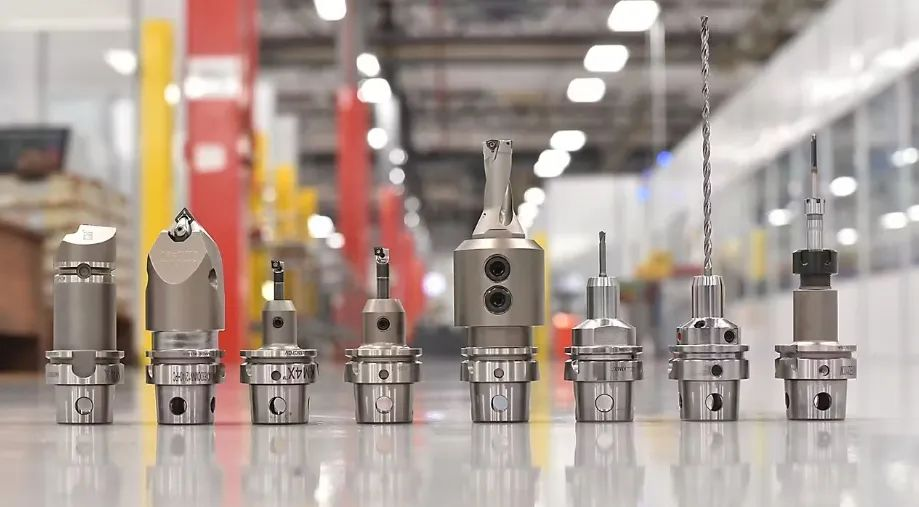

Toolholder Contact, Clamping, and Quality
- Taper-to-spindle contact: Any nick, fretting, or dirt on 7:24 (CAT/BT) or HSK faces raises eccentricity. Clean and lightly oil mating surfaces; stone out burrs.
- Collet & nut geometry: Worn collets, poor angle accuracy, or rough nut faces induce offset. Bearing-style nuts improve clamping with less torsion.
- Pull studs (retention knobs): Low concentricity or soft studs deform under drawbar load, tilting the holder. Use hardened, precision-ground studs.
2) Assembly Length, Mass, and Stiffness
- Overhang (L/D): Longer assemblies magnify radial error and deflection. Shorten wherever possible; prefer stub length end mills for roughing.
- Modular extensions: Each interface stack-up adds potential misalignment. Use the fewest adapters, torque to spec, and clock mating features consistently.
3) Balance and High-Speed Effects
- Imbalance at high RPM excites bending modes and “dynamic runout.” Balance heavy nuts, big cutters, and long arbors to the required G-grade; verify at operating RPMs.
4) Tool Material Sensitivity
- Carbide is stiffer and runs faster, but it’s less forgiving of runout than HSS—edge chipping can accelerate if eccentricity is high.
How to Measure Runout (Correctly)
- Warm the spindle (2–3 minutes at moderate RPM) to stabilize thermal growth.
- Clean everything: spindle nose, holder taper, collet, nut, tool shank.
- Mount a test indicator against a precision ground surface—ideally the tool shank close to the collet face, then again near the cutting edges if there’s a ground land.
- Jog the spindle slowly by hand or at 10–30 rpm; record peak-to-peak TIR.
- Repeatability check: Loosen, reseat, retorque; measure again. Consistent readings indicate true assembly error vs. dirt or poor seating.
Example Measurement Log (one toolholder, three assemblies):
Assembly # | Meas. Point (from nose) | TIR (µm) | TIR (in) | Notes |
1 | 10 mm | 6 | 0.00024 | After warmup; bearing nut |
1 | 35 mm | 9 | 0.00035 | Slight growth with overhang |
2 | 10 mm | 12 | 0.00047 | Swapped to worn collet |
2 | 35 mm | 18 | 0.00071 | Vibration audible at 18k rpm |
3 | 10 mm | 4 | 0.00016 | New collet + cleaned taper |
3 | 35 mm | 7 | 0.00028 | Within target for finishing |
How Runout Multiplies Chip Load (Worked Example)
A 6-flute, 6 mm carbide end mill is programmed for 0.06 mm/rev (0.01 mm per tooth). If runout causes one flute to sit +10 µm, instantaneous chip thickness on that flute ≈ 0.01 + 0.01 = 0.02 mm (double), while the opposite flute may see near-zero chip thickness and rub. The overloaded flute heats, micro-chips, and the cycle repeats—tool life collapses even though your programmed chip load “looks safe.”
Corrective Actions: A Step-by-Step Playbook
Clean & Inspect Interfaces
- Wipe and air-blast spindle face/taper. Use a bright light to check fretting.
- Replace worn collets (rule of thumb: 6–12 months in daily use).
- Inspect pull studs; replace if galling or measurable runout > 5 µm.
Upgrade the Clamping System
- Use bearing-style collet nuts for higher clamping force and lower torsion.
- For micro tools or finishing, consider hydraulic or shrink-fit holders for superior concentricity.
- Balance heavy assemblies to match spindle speeds.
Shorten Overhang
- Use the shortest practical projection. Switch to stub length end mills.
- Eliminate unnecessary extensions/adapters.
Torque to Spec
- Use a calibrated torque wrench on collet nuts and pull studs. Under- or over-torque is a common hidden cause.
Clock the Tool
- If you must live with slight runout, index the high flute to a less critical cutting direction (e.g., leading on a roughing pass) so it “earns its keep.”
Verify and Log
- Measure TIR at installation; record in your job traveler or digital log.
- Trend over time to catch deterioration before it hits parts.
Quick-Hit Checklist for the Shop Floor:
Step | Action | Pass/Fail | Comments |
1 | Spindle & taper cleaned and stoned if needed | ☐/☑ |
|
2 | New or certified collet used | ☐/☑ | Date code: ____ |
3 | Bearing nut torqued to spec | ☐/☑ | Torque: ____ N·m |
4 | Pull stud inspected/replaced | ☐/☑ |
|
5 | Overhang minimized (L/D ≤ target) | ☐/☑ | L/D: ____ |
6 | TIR measured @ 10 mm from nose | ☐/☑ | ____ µm |
7 | TIR measured near cutting edge | ☐/☑ | ____ µm |
8 | Assembly balanced for >15k rpm | ☐/☑ | G-grade: ____ |
Wear Modes Tied to Runout (with Photo Prompts)
- Flute-to-flute wear mismatch (Macro): Insert Image 1 — One flute showing deep flank wear and micro-chipping at the corner radius; adjacent flute shows polished rubbing marks.
- Crater wear asymmetry (Microscope 100×): Insert Image 3 — Label crater depth (µm) across flutes; deepest crater aligns with “long” flute.
- Built-Up Edge on “short” flute (Microscope 100×): Insert Image 4 — BUE islands with heat tint; note smeared aluminum or work-material transfer.
- Drill lip imbalance (Macro + Microscope): Insert Image 2 — Unequal lip wear, bell-mouthing at hole entry, and exit burr bias to one side.
Production Impact Model: The ROI of Fixing Runout
Even small TIR improvements pay big dividends.
Scenario | Avg Tool Life (parts/tool) | Tools Needed | Tool Cost/ea | Tooling Cost | Cycle Time (s) | Machine Cost/hr | Total Cost/1,000 |
Baseline: 12 µm TIR | 125 | 8 | $60 | $480 | 85 | $65 | $1,998 |
Improved: 6 µm TIR | 220 | 5 | $60 | $300 | 80 | $65 | $1,760 |
Optimized: 3 µm TIR | 300 | 4 | $60 | $240 | 78 | $65 | $1,682 |
Special Cases & Pro Tips
- Micro-tools (≤ 1 mm): Treat 3–5 µm TIR as your upper limit; hydraulic or shrink-fit holders recommended.
- Hard steels (> 50 HRC): Runout accelerates micro-chipping; use honed edges and very low TIR.
- Aluminum finishing: Even if aluminum is “forgiving,” runout creates swirl marks and haze. Tighten TIR before chasing coolant or coating fixes.
- High-speed spindles (> 18k rpm): Balance the entire assembly, not just the cutter. Dynamic runout ≠ static TIR—validate at speed if possible.
Example Troubleshooting Flow
- Symptom: One-sided burrs, early edge chipping, haze in finish.
- Check #1: Measure TIR at shank @ 10 mm — result 12 µm → too high for a 4 mm finisher.
- Action: Replace collet, clean taper, swap to bearing nut, retorque.
- Re-measure: 5–6 µm → acceptable.
- Verify on part: Finish haze disappears; tool life improves from 120 to 210 parts.
Frequently Asked Questions
Q1: My TIR is fine at the shank, but parts still show runout symptoms—why?
A: The cutting edge may be eccentric relative to the shank (tool manufacturing tolerance), or dynamic runout at speed is higher. Measure closer to the flutes and consider at-speed diagnostics.
Q2: Is hydraulic better than collet for runout?
A: Generally yes, hydraulic and shrink-fit holders deliver lower eccentricity and better damping. Collets are versatile and cost-effective; keep them fresh and use bearing nuts.
Q3: How often should I replace collets?
A: In daily use, 6–12 months is common. Inspect for spring collapse, taper wear, and face nicks—any of these will add eccentricity.
Q4: Can tool presets eliminate runout?
A: Presetters ensure length/diameter offsets but don’t fix spindle-side errors. You still need good holders, clean interfaces, and correct torque.
Implementation Plan You Can Use This Week
Day 1: Audit & Clean
- Clean spindle and holder tapers; retire suspect collets.
- Create a TIR log sheet for each common tool/holder pair.
Day 2: Clamp System Upgrade
- Add bearing nuts for high-use collet sizes.
- Identify finishing tools that merit hydraulic or shrink-fit.
Day 3: Overhang Reduction
- Swap to stub length cutters; remove unnecessary extensions.
- Balance any assembly used above 15k rpm.
Day 4–5: Verify & Standardize
- Measure and record TIR at install; set pass/fail gates per Table 1.
- Train operators to capture macro/micro wear photos each time a tool is pulled for “visible” root-cause learning.
Conclusion
Runout is not just a metrology number—it is a multiplier on every cost driver in your machining cell: tool life, cycle time, finish, and dimensional stability. By controlling interfaces (taper/collet/nut/stud), minimizing overhang, balancing at speed, and measuring TIR routinely, you transform an invisible problem into a controlled variable. The practical tables and photo prompts above make it easy to set targets, diagnose issues quickly, and document improvements your team—and your bottom line—will notice on the very next run.
