TNMG turning inserts are among the most widely used negative-rake inserts in metalworking. With their iconic triangular shape, six cutting edges, and solid strength, TNMG carbide inserts deliver excellent performance in medium-to-heavy turning operations.
This guide covers everything you need to know about TNMG inserts—from sizes like TNMG1604, TNMG331, TNMG332, TNMG432, to chipbreakers, material choices (carbide, ceramic, cermet, CBN), prices, specifications, holders, and how to choose the correct TNMG insert for your machining needs.
1. What Makes TNMG Turning Inserts So Popular?

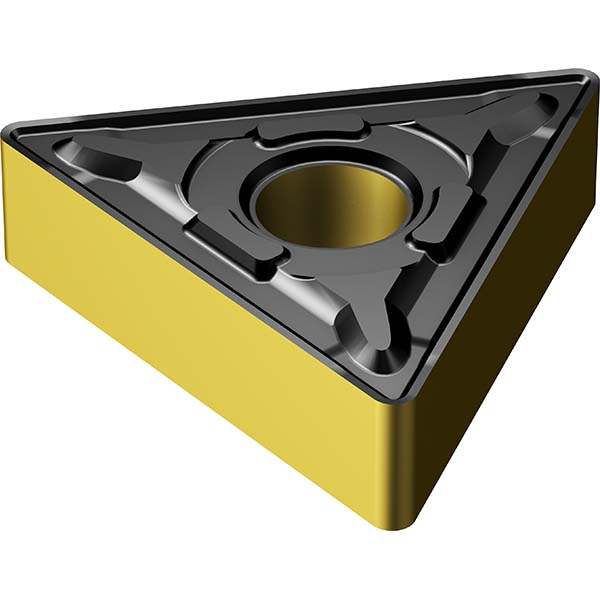

TNMG turning inserts are negative-rake, double-sided triangular inserts designed for toughness and cost-efficiency.
Each insert provides six cutting edges, giving it an advantage over CNMG (4 edges) and VNMG (2 edges).
Key Advantages
Six cutting edges → reduced cost per edge
Exceptional toughness for heavy cuts
Suitable for steel, stainless steel, cast iron, and hard-to-cut materials
Wide range of chipbreaker designs and coating options
Compatible with many toolholder systems
This versatility explains why TNMG inserts appear in almost every general machining workshop worldwide.
2. TNMG Insert Sizes: TNMG1604, TNMG331, TNMG332, TNMG432
Table 1. Popular TNMG Insert Models & Dimensions
| Insert Code | Common Name | Cutting Length | Thickness | Hole | Corner Radius | Application |
|---|---|---|---|---|---|---|
| TNMG1604 | TNMG 332 | 9.7 mm | 4.76 mm | 3.81 mm | 0.4 / 0.8 / 1.2 | General steel turning |
| TNMG331 | TNMG160404 | 9.7 mm | 4.76 mm | 3.81 mm | 0.4 | Precision cutting |
| TNMG332 | TNMG160408 | 9.7 mm | 4.76 mm | 3.81 mm | 0.8 | Medium roughing |
| TNMG432 | TNMG220408 | 12.7 mm | 4.76 mm | 5.56 mm | 0.8 | Larger depth-of-cut |
TNMG332 and TNMG1604 are globally the most frequently purchased models in the TNMG family.
3. Material Options: Carbide, Ceramic, Cermet & CBN TNMG Inserts
3.1 Carbide TNMG Inserts (Most Popular)
Carbide TNMG inserts are ideal for:
Steel (P10–P40)
Stainless steel (M10–M30)
Cast iron (K10–K30)
Coating Options
TiAlN
AlTiN
TiCN
CVD multi-layer coating
Carbide is the best all-around performer with balanced toughness and wear resistance.
3.2 Ceramic TNMG Inserts
Used for:
Cast iron finishing
Super alloy machining (Inconel / Hastelloy)
Advantages
Extremely high heat resistance
Ultra-high cutting speed
3.3 Cermet TNMG Inserts
Best for:
High-precision finishing
Stainless steel
Low-carbon steel
Produces very smooth surface finishes.
3.4 CBN TNMG Inserts
Applications:
Hardened steel (HRC 50–65)
Tool steel
Bearing steel
CBN TNMG inserts provide unmatched wear resistance and can replace grinding processes in many cases.
4. TNMG Grades and Chipbreaker Types
Choosing the right grade & chipbreaker determines cutting performance, chip control, and tool life.
Table 2. TNMG Insert Grade Overview
| Material | Recommended Grade | Description |
|---|---|---|
| Steel | P20–P35 | Excellent wear resistance and toughness |
| Stainless | M20–M30 | Prevents chip welding and built-up edge |
| Cast Iron | K10–K20 | High-speed capability |
| Hardened Steel | CBN | For hard turning (HRC 50+) |
| Alloys | Ceramic | Heat-resistant finishing |
Common Chipbreaker Types
MP / MS → Medium machining
MK → Stainless steel cutting
MA → Finishing
MR / R → Roughing
HF / HR → Heavy-duty
Chipbreaker design greatly affects chip curling, control, and surface finish.

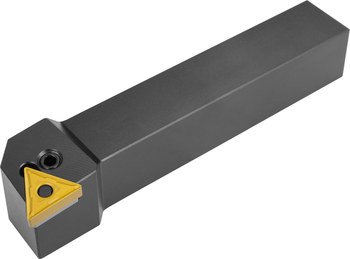

5. TNMG Insert Holders
TNMG inserts use negative-style turning holders, including:
MTGNR / MTGNL – 95° turning holder
PTGNR / PTGNL – Strong clamping, ideal for tough materials
STGNR / STGNL – General-purpose CNC holders
Choosing a rigid, high-quality holder maximizes cutting stability.
6. TNMG Insert Specifications (ISO/ANSI)
A typical TNMG specification looks like this:
TNMG160408-MP-P25
Meaning:
T – Triangle shape
N – 0° relief angle
M – Tolerance class
G – Hole + chip groove
1604 – Size and thickness
08 – 0.8 mm radius
MP – Chipbreaker
P25 – Material grade
Understanding these codes helps ensure perfect insert–holder compatibility.
7. Competitive TNMG Insert Prices
Why TNMG offers better price-performance:
Six cutting edges lower cost per edge
Durable in heavy turning
Widely produced in China → better price advantage
Leading Chinese suppliers can offer:
OEM services
Large stock availability
Customized chipbreaker designs
Coatings equivalent to top global brands
Suitable for distributors, wholesalers, and factory buyers.
8. Selecting the Right TNMG Insert (Quick Guide
| Material | Best TNMG Grade | Best Chipbreaker | Recommended Model | Notes |
|---|---|---|---|---|
| Steel | P20–P35 | MP / MR | TNMG1604 / 332 | High stability |
| Stainless | M20–M30 | MK | TNMG331 | Avoid welding |
| Cast Iron | K10 | KF | TNMG432 | Dry cutting |
| Alloy Steel | P30 | MS | TNMG332 | Strong edge |
| Hardened Steel | CBN | — | TNMG1604 | Hard turning |
| Inconel | Ceramic | SF | TNMG332 | High temp resistant |
9. Why Work With a TNMG Insert Manufacturer in China?
Working with a Chinese TNMG insert supplier delivers strong advantages:
Full range: TNMG1604, TNMG331, TNMG332, TNMG432
Advanced coating technology
OEM/ODM customization
Attractive pricing
Fast shipment & stable supply
Global distributor support
For companies needing consistent supply and competitive cost, China is currently the most reliable source for TNMG inserts.
Conclusion
TNMG turning inserts remain a cornerstone in the CNC metal cutting industry thanks to their toughness, versatility, and cost-effectiveness. Whether you are machining steel, stainless steel, cast iron, or hardened material, there is always a TNMG material and chipbreaker combination that fits your needs.
