Spiral router bits are widely used in CNC routing, woodworking, and production machining—but not all spiral router bits are designed for the same job. Understanding the different spiral router bit types is essential for selecting the right tool, improving surface quality, and avoiding unnecessary tool wear.
In this guide, we’ll explain the most common spiral router bit styles, how each type is used, and how to match the correct spiral router bit to your routing application.
Why There Are Different Spiral Router Bit Types
A spiral router bit uses a helical cutting edge to manage chip direction and cutting forces. However, routing tasks vary widely—from light trimming to deep pocketing—so spiral router bits are engineered in different forms to meet specific needs.
Different spiral router bit types are designed to optimize:
Entry method (side entry vs plunge)
Edge finishing accuracy
Cutting depth and reach
Chip evacuation during deep cuts
Manual routing vs CNC routing
Choosing the correct type improves finish quality, cutting stability, and tool life.

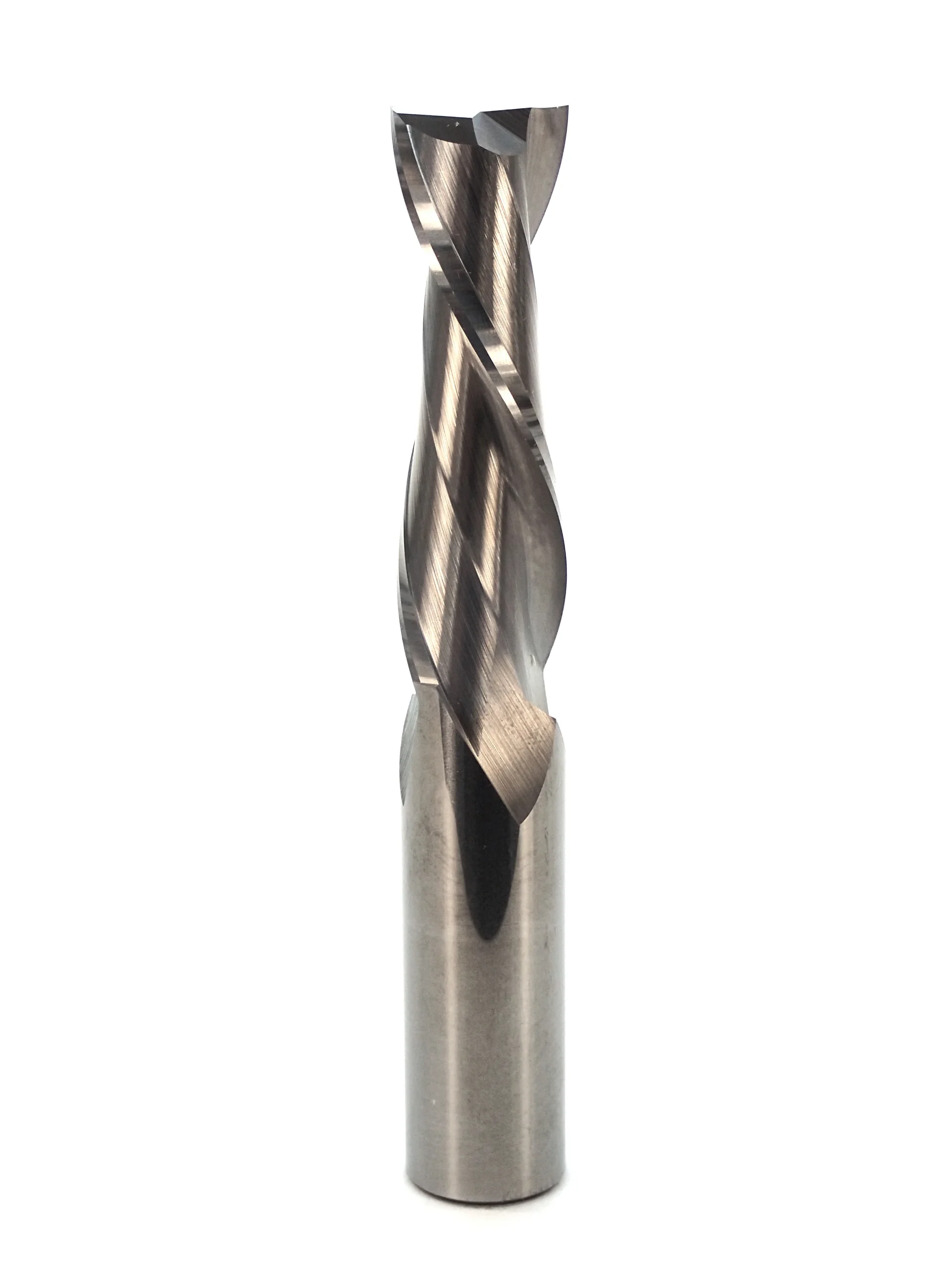

Spiral Trim Router Bit
A spiral trim router bit is primarily used for edge trimming and light profiling. It is commonly applied in woodworking and CNC routing where clean, accurate edges are required.
Typical applications:
Trimming excess material
Edge finishing
Template routing
Panel and laminate trimming
Spiral trim router bits provide smoother edges than straight trim bits, especially on plywood and laminated materials. The spiral cutting action reduces tear-out and produces a cleaner finish.

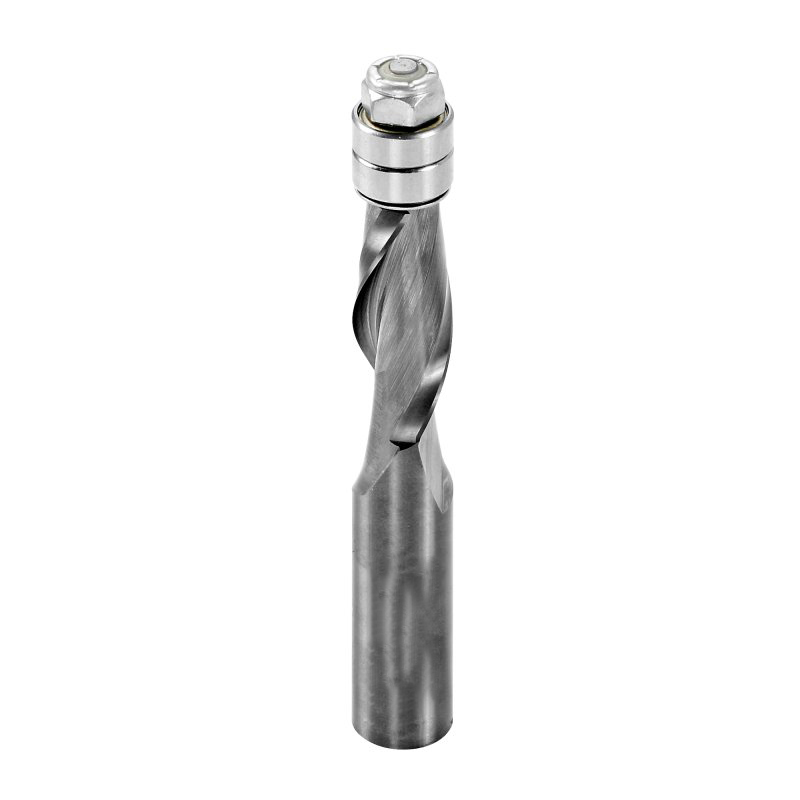

Spiral Flush Router Bit
A spiral flush router bit is designed to trim material flush with a template or guide. These bits are widely used in pattern routing where accuracy and repeatability are critical.
Common uses:
Template-based routing
Laminate flush trimming
Duplicate part production
Because the spiral edge continuously shears the material, flush spiral bits offer better surface quality and longer tool life than straight flush trim bits.
Spiral Plunge Router Bit
A spiral plunge router bit is engineered to enter the material vertically before moving laterally. This makes it ideal for slotting, pocketing, and interior cutouts.
Typical applications:
Plunge cutting
Slot creation
Pocket machining
CNC interior profiling
Spiral plunge bits are preferred in CNC routing because they provide controlled entry and stable depth accuracy, reducing tool deflection during plunge operations.
Spiral Mortising Router Bit
A spiral mortising router bit is used for cutting deep slots and mortises. Mortising requires efficient chip evacuation to avoid clogging, making spiral designs especially effective.
Typical uses:
Mortise-and-tenon joints
Deep slotting
Joinery operations
Many workshops use a spiral mortising router bit set, which includes multiple diameters to handle different mortise sizes without changing tool families.
Spiral Bit for Router Table Applications
A spiral bit for router table use offers smoother feeding and better edge control compared with straight bits. Router tables often involve manual feeding, so cutting stability is critical.
Benefits for router table use:
Reduced vibration
Cleaner edge finish
Improved safety during manual feeding
Spiral bits are especially useful for visible edges and laminated materials where surface finish matters.

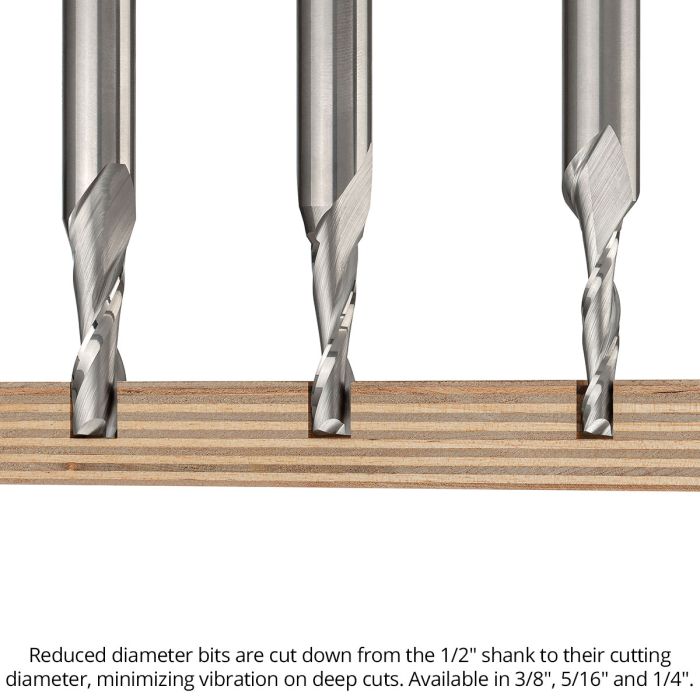

Long Spiral Router Bit for Deep Cutting
A long spiral router bit is designed for applications requiring extended reach or deep cutting depth.
Common applications:
Thick material routing
Deep slotting
Large panel machining
Long spiral bits maintain cutting stability while allowing deeper passes, especially when paired with CNC routers.
Carving Spiral Router Bit
A carving spiral router bit is used for decorative shaping, contouring, and detailed profiling.
Typical uses:
CNC carving
Sign making
Decorative woodworking
Artistic profiling
Spiral carving bits produce smoother curves and cleaner details compared with straight carving tools.
Spiral Router Bit Types Comparison Table
| Spiral Router Bit Type | Main Application | Typical Use |
|---|---|---|
| Spiral trim router bit | Edge finishing | Trimming & profiling |
| Spiral flush router bit | Template routing | Pattern duplication |
| Spiral plunge router bit | Vertical entry | Slotting & pockets |
| Spiral mortising router bit | Joinery | Mortises & slots |
| Spiral bit for router table | Manual routing | Edge control |
| Long spiral router bit | Deep cutting | Thick materials |
| Carving spiral router bit | Decorative work | CNC carving |
Choosing the Right Spiral Router Bit Type
To select the correct spiral router bit type, consider:
Material thickness
Required cutting depth
CNC or manual routing
Surface finish requirements
Production vs custom work
Matching the tool design to the application reduces tool wear and improves overall machining efficiency.
Final Thoughts: Why Understanding Spiral Router Bit Types Matters
Knowing the differences between spiral router bit types allows shops to optimize routing performance and avoid common cutting problems. From trimming and flush cutting to plunge routing, mortising, and carving, each spiral router bit type is engineered for a specific purpose.
By selecting the correct spiral router bit for each task, users can achieve better finishes, longer tool life, and more reliable results in both CNC and manual routing applications.
