It is possible to fabricate complex three-dimensional contours with a smooth finish using rotational tools and dies. Many milling processes use ball nose end mills, including profile milling, tracer milling, face milling, and plunging. These cutting tools have more rounded teeth than conventional drill bits than traditional drill bits. As far as ball end mills are concerned, they have traditionally been used to mill various materials, such as plastics, titanium, steel alloys, and many other metals, as they are highly durable. For example, using an uncoated-carbide end mill, you can mill aluminium, plastics, and other non-ferrous materials.
Moreover, the 45° helical angle used in the design helps evacuate chips more quickly, thus reducing the amount of heat generated and resulting in a higher quality surface finish. Instead of just rounding off the edges, the tool’s radius was reduced by grinding the entire radius of the end down to half its diameter. You can manufacture these with high-speed steel composition or using solid carbide. By their applications, they may be single-ended or double-ended. Ball end mills with hemispherical tips can be used to grind grooves for parts with metal bearings subtly, and round tips make it possible to machine round details. Tungsten Carbide End Mills have two flutes, and at the bottom of the flutes, there is a radius, providing a smoother surface finish on the workpiece, and there will be little or no finishing involved on your part.
Since they are made to disperse that heat over a wide area, their shape enables them to cut faster.

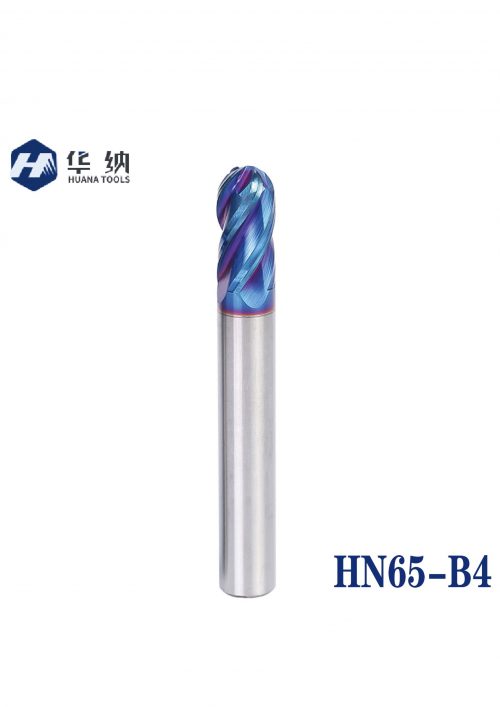

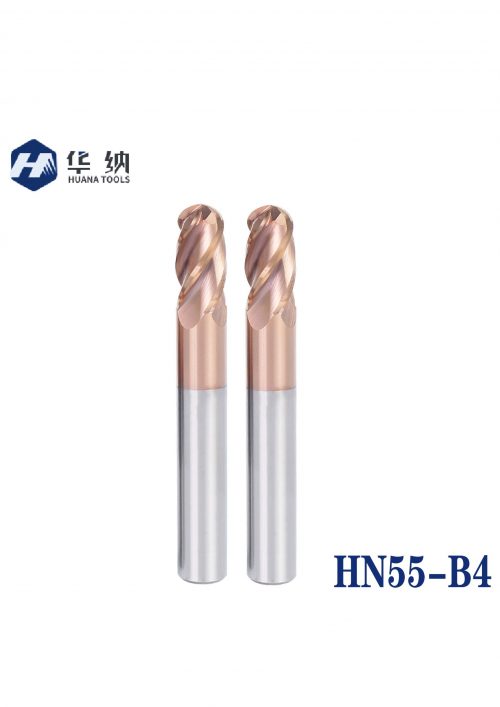

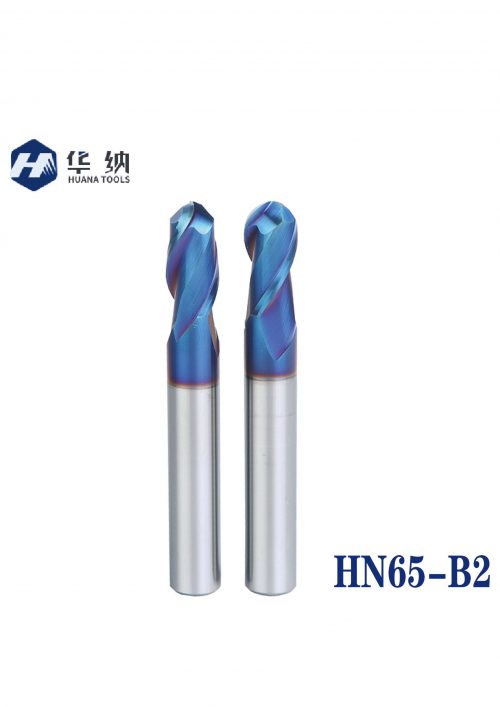

HUANA not only provide 2F Ball Nose end mill but also 4F Ball Nose end mill
