In modern metal cutting processes, cooling and lubrication play a critical role in ensuring tool performance, surface finish, and overall machining efficiency. Deep hole drilling, in particular, presents unique challenges due to limited chip evacuation, high heat generation, and restricted access to the cutting zone. Traditional flood cooling systems often fail to deliver satisfactory results under these conditions, and they introduce significant environmental and cost concerns.
This is where Minimum Quantity Lubrication (MQL) technology comes into play. Also known as near-dry machining or semi-dry cutting, MQL is a sustainable alternative that uses a very small amount of lubricant—typically between 5–60 ml per hour—mixed with compressed air or gas. The fine mist is sprayed directly onto the cutting edge, providing effective lubrication and partial cooling while significantly reducing fluid consumption.
2. What is MQL?
Minimum Quantity Lubrication (MQL) is a green manufacturing technology that combines the advantages of dry and wet machining. It minimizes coolant usage by transforming a small amount of lubricant into a fine aerosol that is delivered precisely to the cutting area. When the micro-droplets contact the hot cutting tool, they instantly evaporate, carrying away heat and forming a thin lubricating film to reduce friction.
Working Principle
The MQL system operates by using compressed air or other gases (such as nitrogen or CO₂) to atomize a small quantity of lubricant oil. The mixture is then sprayed through nozzles or internal tool channels to reach the cutting zone. The main functions of MQL are:
Lubrication: Reduces friction and cutting forces between the tool and the workpiece.
Cooling: Assists in dissipating heat generated during the cutting process.
Chip evacuation: Helps remove chips and prevent tool clogging.
Unlike conventional flood cooling, MQL leaves the workpiece, chips, and tool nearly dry, eliminating the need for extensive post-processing and waste fluid disposal.

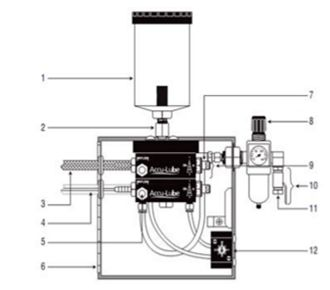

3. Components of an MQL System
A typical MQL system consists of the following components:
Lubricant Reservoir – Stores a small volume of specialized oil.
Air and Oil Supply Lines – Deliver compressed air and oil separately or mixed.
Mixing Chamber – Where air and lubricant combine to form the aerosol.
Flow Control Valves – Regulate the flow and ratio of air to oil.
Nozzle or Internal Channels – Direct the aerosol to the cutting area.
These components work together to ensure a stable, fine mist that can consistently reach the tool tip even under high-speed machining conditions.
4. Types of MQL Systems
MQL systems can be classified according to how the air and lubricant are delivered to the cutting zone: external and internal systems.
4.1 External Aerosol Lubrication
In this configuration, the lubricant and compressed air are mixed and sprayed externally through one or more nozzles directed at the cutting zone. External systems are easy to install and cost-effective but have some limitations:
The mist often struggles to penetrate deep holes or enclosed cutting areas.
Droplets may disperse into the air, requiring protective equipment.
The cooling and lubrication effects are less uniform in complex geometries.
4.2 Internal Aerosol Lubrication
In internal systems, the lubricant-air mixture travels through the spindle and tool’s internal channels to reach the cutting edge directly. This method provides more efficient cooling and lubrication but requires more complex machine tool design.
Advantages of internal lubrication include:
Direct access to the cutting zone
Improved lubrication uniformity
Better chip evacuation in deep holes
However, drawbacks include higher equipment cost, the potential for nozzle blockage, and limitations on spindle speed due to centrifugal effects.
5. Comparison: Single-Channel vs. Dual-Channel MQL Systems
The design of MQL delivery can be further divided into single-channel and dual-channel systems. Each has distinct characteristics and applications.
Feature | Single-Channel MQL System | Dual-Channel MQL System |
Mixing Method | Air and lubricant are mixed before entering the spindle | Air and lubricant are delivered separately and mixed near the tool tip |
Structure | Simpler and cheaper | More complex but precise |
Maximum Spindle Speed | Up to ~16,000 rpm | Up to ~40,000 rpm |
Lubrication Control | Difficult to adjust lubricant flow independently | Precise control of air and oil flow |
Best Application | Standard machining centers | High-speed or deep hole machining |
Distance Limitation | Max spray distance ~1.2 m | Longer effective range |
In deep hole machining, dual-channel systems are preferred because they maintain stable aerosol quality and effective lubrication even at higher spindle speeds.
6. Requirements for Cutting Tools in MQL
Since MQL relies on minimal fluid and limited cooling, cutting tools must withstand high thermal and mechanical stress. The following requirements are critical:
High-temperature resistance – Cutting tools must endure elevated temperatures; advanced coatings such as TiAlN, AlCrN, or diamond-like carbon (DLC) are recommended.
Low friction coefficient – A thin lubricating film on the coating surface helps reduce built-up edge formation.
High hardness and toughness – Tools must resist both mechanical impact and thermal fatigue.
Optimized geometry – Proper rake, clearance, and chip-breaking design promote heat dissipation and chip removal.
For internally lubricated MQL tools, designers must also integrate internal channels that allow smooth passage of the aerosol without obstruction, along with protected outlets to prevent chip contamination.
7. Cutting Performance of MQL
Extensive studies show that MQL outperforms both dry and flood cutting in many applications, particularly when machining titanium alloys, hardened steels, and high-temperature alloys. The benefits include:
Increased tool life: Reduced friction and lower cutting temperature lead to less tool wear.
Improved surface quality: Smoother lubrication prevents adhesion and surface damage.
Lower cutting forces: Decreased friction reduces tool stress.
Environmentally friendly: Minimizes cutting fluid waste and post-treatment costs.
However, standard MQL systems may lose effectiveness during high-speed machining of difficult-to-cut materials because the temperature in the cutting zone becomes too high for the lubricant film to remain stable. To improve this, new approaches such as low-temperature MQL and nitrogen-assisted MQL have been developed.
Low-Temperature MQL
By cooling the compressed air before mixing with lubricant, the heat exchange efficiency is increased. This enhances the cooling effect and prolongs tool life.
Nitrogen-Assisted MQL
Replacing compressed air with nitrogen reduces oxidation in the cutting zone and further improves lubrication stability. This method is particularly effective for titanium and nickel-based alloys.
8. Advantages and Limitations of MQL
Advantages:
Reduces coolant usage by more than 90%
Cleaner working environment and easier chip handling
Lower operational and disposal costs
Enhanced surface finish and tool life
Limitations:
Insufficient cooling for extremely high-speed operations
Requires specialized tool design (especially for internal systems)
Higher initial equipment cost for dual-channel systems
Despite these limitations, MQL remains one of the most promising technologies for sustainable machining and has become a preferred method for deep hole drilling in aerospace, automotive, and medical industries.
9. Conclusion
Minimum Quantity Lubrication represents a major step forward in achieving green and efficient manufacturing. By delivering lubrication precisely where it’s needed while minimizing environmental impact, MQL offers a practical balance between productivity and sustainability.
In deep hole machining, MQL has proven to enhance tool life, surface quality, and machining stability—all while reducing costs and ecological footprint. As the technology continues to evolve, the integration of low-temperature and nitrogen-assisted MQL systems will further expand its potential in machining high-performance materials.
