High-speed machining or HSM is transforming the modern manufacturing processes. They enable manufacturing plants to achieve high production speeds, while ensuring excellent accuracy. These machines operate at cutting speeds and feed rates that are significantly high. As a result, they are highly sought after in industries where precision and efficiency are paramount.
One of the core principles of HSM is to minimize cutting force by increasing the overall cutting speed. This approach can be beneficial when machining challenging materials such as titanium alloys and hardened steel. However, this technology comes with its own challenges as well. For example, the extreme operating conditions accelerate wear and tear of these machines. That’s where the Huana Variable-Helix DLC Coated End Mills for high speed machining comes into play. Read on and let’s explore more about it in detail.

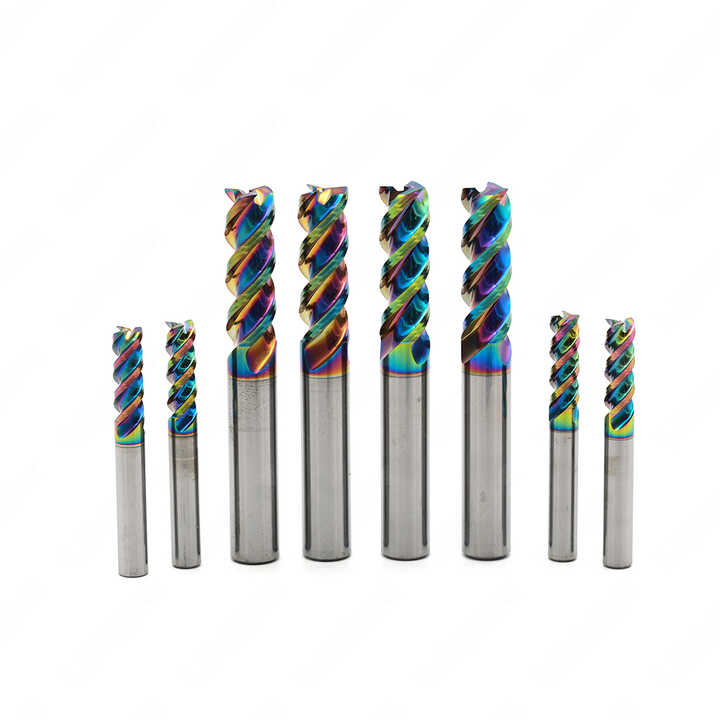

The Variable-Helix DLC Coated End Mills by Huana
Huana could develop an innovative solution that addresses the core issues of high-speed machining. They were able to do it via integration of variable-helix geometry and Diamond-like Carbon (DLC) technology. This combination offers significant advancements in cutting tool design. As a result, manufacturers can get a solution that address the limitations of traditional HSM.
The Science Behind Variable-Helix DLC Coated End Mills
The variable-helix design offers a fundamental shift from traditional end mill geometry. If you take a closer look, you will notice that these differ a lot from conventional end mills. That’s mainly because conventional mills have varying helix angles along the length of the tool. This innovative design can disperse cutting force evenly through the cutting process. It can significantly reduce the harmonics that cause vibration and chatter.
The variable helix geometry is capable of minimizing tool chatter and vibration. That’s because it can break up the harmonic frequencies that occur during the cutting process. This stability allows for higher cutting speeds and feeds. There won’t be any compromise in accuracy or surface quality.
The design also contributes towards better chip evacuation. It prevents chip packing and enhance the overall material removal rate. According to research, it has been identified that variable-helix tools can stabilize larger widths of cut because of the distributed time delays. This is valuable in high-speed machining applications, where maintaining stability is essential. It can ensure productivity at the end of the day.
Diamond-Like Carbon Coating Technology
DLC offers some of the most advanced surface treatments for cutting tools. These coatings showcase exceptional hardness along with low friction. As a result, they are ideal for high-speed machining application. The friction coefficient of DLC ranges between 0.015 and 00.2. It significantly reduces the energy required to maintain cutting operations.
There are multiple benefits of Diamond-Like Carbon Coating Technology. Let’s take a look at them:
- Reduction of friction.
- Lower cutting force when compared to traditional cemented carbide tools.
- Higher drilling efficiency and improved surface finishes.
- Removing the need for secondary finishing operations.
- Ensuring exceptional tool life.
Performance Analysis – Qualifying the Benefits

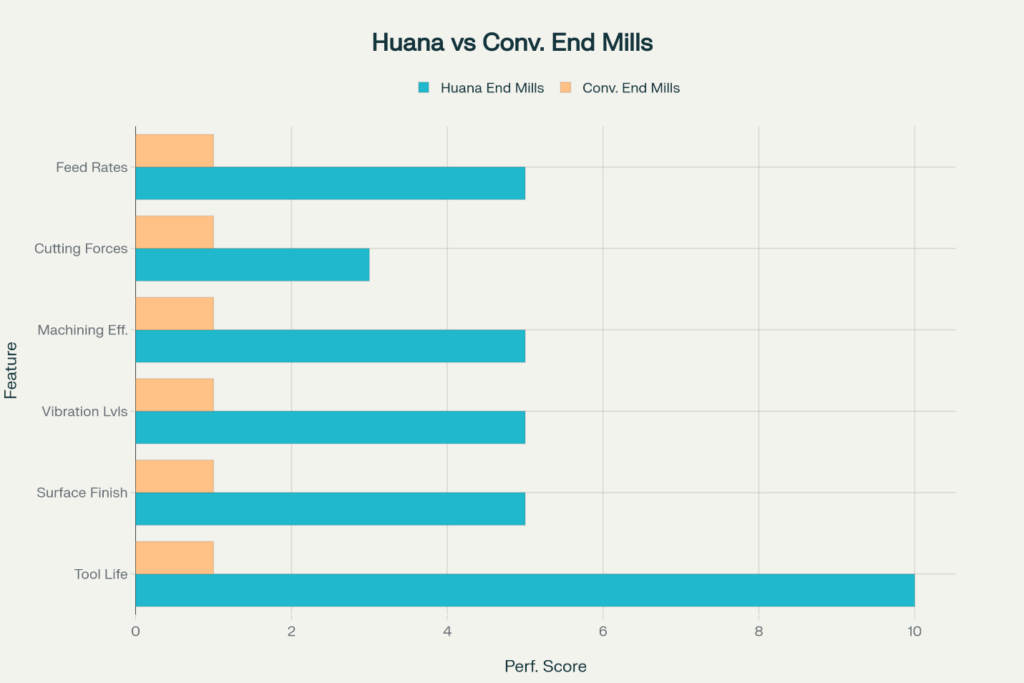

The combination of variable-helix geometry and DLC coating technology creates an impressive synergistic effect. It can eventually address numerous challenges. Let’s do a performance analysis with traditional end mills and explore it in detail.

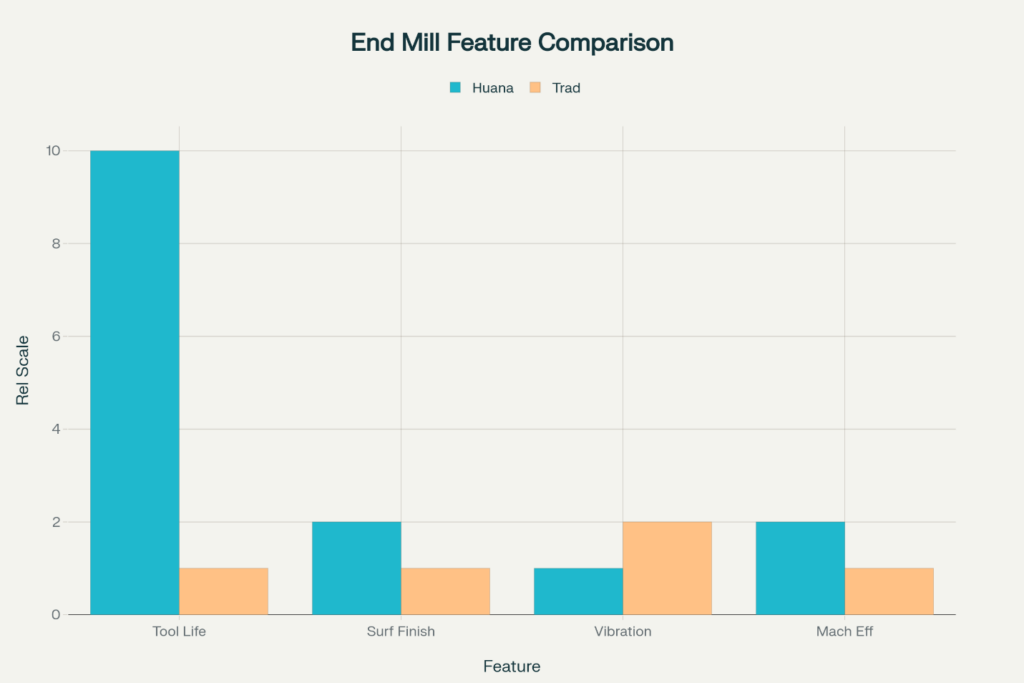

Feature | Huana Variable-Helix DLC End Mills | Traditional End Mills |
Tool Life | Up to 10 times longer | Standard |
Surface Finish | Superior | Standard |
Vibration | Reduced | Higher |
Machining Efficiency | Increased | Standard |
Tool Wear Reduction
The Huana variable-helix DLC end mills are known for their exceptional tool life. They offer the unique combination of reduced cutting forces and improved stability. As a result, you can expect them to last more than 10 times when compared to traditional end mills. This dramatic improvement in tool life can help you reduce tooling costs. Moreover, it can also reduce machine downtime for tool changes.
The extended tool life can be beneficial when machining non-ferrous materials such as brass and aluminum. The excellent chip evacuation capabilities can prevent built-up edge formation.
Surface Finish Improvements
Another impressive thing about Huana variable-helix DLC end mills is surface finish improvement. The variable helix geometry will minimize chatter-induced surface irregularities. In the meantime, low friction properties can reduce the likelihood of workpiece material handling into the tool surface.
Vibration Reductio and Stability
The design of Huana variable-helix DLC end mills can reduce harmonics while distributing cutting forces more evenly. As a result, you can expect additional stability during machining operations. This stability becomes important when maintaining dimensional accuracy. When you are working with thin-walled components, you will absolutely love what it offers.
Material Specific Applications and Benefits
Huana variable-helix DLC end mills can take CNC machining technology to another level. You can find the applications of it in many different industries. Let’s take a look at some of the most prominent applications out of them.
Aluminum Machining Excellence
The DLC coated variable-helix end mills are ideal for aluminum machining applications. The combination of low friction in DLC coating and the chip evacuation capabilities can make it ideal for high-speed aluminum cutting. The polished surface will reduce friction and improve chip flow. This can prevent chip welding, which often occurs when machining aluminum with traditional tools.
When used in aerospace component manufacturing, Huana variable-helix DLC end mills can offer following benefits.
- Reduction of cutting forces by 67% when compared to uncoated tools.
- Improvements to the surface quality and ensuring mirror-like finishes. This offers the opportunity to skip secondary operations.
- Improvements to chip evacuation, while preventing chip packing as well as built-up edge formation.
- Removing the need for cutting fluids in numerous applications.
Non-Ferrous Material Processing
Apart from aluminum, the variable-helix DLC end mills excel in machining other non-ferrous materials as well. Brass, copper, and different plastic materials are to name a few. The chemical inertness and low friction properties make this machining efficiency highly effective for such materials. That’s because the materials mentioned above are highly vulnerable to adhesion and galling.
Case Studies: Real World Applications

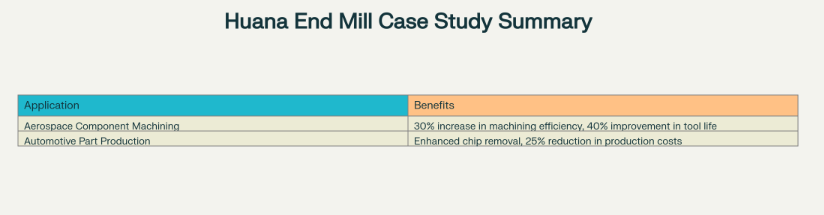

The real world CNC machining applications of Huana Variable-Helix DLC Coated End Mills are impressive. Let’s take a look at some case studies and explore those precision tooling applications in detail.
Aerospace Component Machining
The aerospace industry demands the highest level of precision and surface quality. Hence, it becomes an ideal application for the Huana Variable-Helix DLC Coated End Mills. According to a recent case study, the Huana End mills demonstrated excellent performance improvements.
The results obtained from the aerospace application showed:
- 30% increase in machining efficiency. It was achieved by reduction of cycle times, while maintaining a tight tolerance.
- 40% improvement in tool life. This was achieved by reduction of the replacement frequency of tools. Tool wear reduction played a significant role here.
- Excellent surface finish. This was achieved through elimination of secondary finishing operations.
- Improvements to dimensional accuracy. It was possible to achieve this through enhancing part consistency across production runs.
These improvements were significant when machining thin-walled aerospace components. It was essential to ensure vibration control to maintain dimensional accuracy. The Huana Variable-Helix DLC Coated End Mills were able to cater to that specific requirement perfectly well.
Automotive Part Production
High-volume automotive manufacturing presents its unique challenges as well. It requires tools that are capable of maintaining performance across extended production runs. The Huana Variable-Helix DLC Coated End Mills could contribute well to this application as well. Let’s explore the results obtained from the automotive part production case study.
- Better chip removal. The improved chip evacuation was able to prevent work stoppage.
- Reduction of cycle times. Automotive plants could experience higher production times, with no compromise in quality.
- 25% reduction in the overall production costs. The combination of reduced tooling costs and improvements to productivity contributed towards this.
- Consistent performance. It was possible to maintain quality across high-volume production runs.
Comparative Analysis – Industry Standards vs Huana Technology

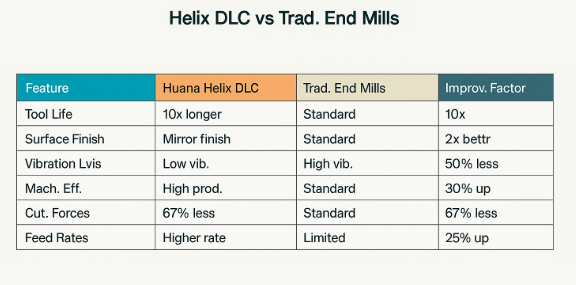

When you compare Huana precision tooling with other options available in the industry, you will notice some significant differences. Let’s explore more about these differences. Then you can make an informed decision to invest money on cost-effective machining and experience productivity enhancement that comes with it.
Huana – Addressing the Technical Challenges of High-Speed Manufacturing
You can find numerous technical challenges in traditional CNC machining processes. However, Huana Variable-Helix DLC Coated End Mills can address these technical challenges effectively. Let’s see how it happens in detail.
Tool Wear and Material Degradation
Rapid tool degradation is one of the most significant challenges of CNC machining. It happens due to extreme temperatures generated at tool-workplace interface. The traditional cutting tools often fail to deliver their best performance under these conditions.
As a result, you will have to deal with frequent tool changes. You may also experience higher downtime and operational costs. Huana Variable-Helix DLC Coated End Mills can help you overcome such challenges effectively. As a result, you don’t need to worry about accelerated wear or potential tool failure.
Vibration and Chatter Issues
Higher spindle speeds in HSM can lead to instability issues. Chatter and excessive vibration are some of them. These issues can create a direct impact on surface quality as well as tool performance.
These vibrations will eventually result in poor surface finishes. You may also experience dimensional inaccuracies and premature tool failure. Such challenges would become more complex when you are dealing with materials that are vulnerable to work hardening. When you are machining thin-walled components that lack structural rigidity, this can become a big issue. This is where Huana Variable-Helix DLC Coated End Mills can help you with.
Heat Generation and Thermal Management
Excessive heat buildup during high-speed operations can be a significant threat to tool life. Moreover, it can compromise dimensional accuracy as well. This is why it is important to implement appropriate thermal management methods. Otherwise, heat generation can cause materials to loose their hardness. Moreover, it can negatively impact overall cutting efficiency.
The Huana Variable-Helix DLC Coated End Mills offers excellent thermal management. Hence, you will be able to ensure ideal performance even under extreme conditions.
Economic Impact and Cost Analysis
When trying to invest on Huana Variable-Helix DLC Coated End Mills, it is better to learn more about the economic impact of it. Here are some useful facts to be aware of it.
Total Cost Ownership
The initial investment for Huana Variable-Helix DLC Coated End Mills can be high when compared to traditional high-speed machining. However, DLC-coated tools can offer outstanding benefits in the long run.
Direct Cost Savings:
- You will experience 10x longer life in tools along with reductions in tool replacement.
- Reduction of machine downtime for changing tools.
- Elimination of secondary finishing operations.
- Reduction of cutting fluid consumption in multiple applications.
Indirect Benefits:
- Enhancements to production consistency and quality.
- Reduction of scrap rates due to excellent surface finish.
- Improvements to manufacturing throughout.
- Lower inventory requirements for cutting tools.
Huana Variable-Helix DLC Coated End Mills – Ensuring the Future of High-Speed Machining
The Huana Variable-Helix DLC Coated End Mills marks a milestone in cutting tool technology. That’s because it addresses the fundamental challenges that high-speed machining has been dealing with. Via an innovative combination of variable helix geometry and DLC coating technology, these tools offer excellent performance. You can enjoy enhanced tool life, surface quality, and machining efficiency.
The case studies clearly explain how beneficial Huana Variable-Helix DLC Coated End Mills is for multiple industries. The improvements to productivity, quality, and cost-effectiveness are obvious as well. The future of high-speed machining lies in continuous advancements of cutting tool technology. The innovative approach by Huana positions themselves at the forefront of this evolution. Manufacturers who wish to position themselves above competition through improved machining capabilities can think about investing on Huana Variable-Helix DLC Coated End Mills.
