Walk into any industrial supply store and you’ll see an entire wall of carbide burr bits. Cylinder shapes, ball shapes, cones, different shank sizes, and even diamond coated carbide burr bit carbon fiber options—no wonder many users feel overwhelmed.
This guide shows you how to choose the correct carbide burr bit, carbide burr drill bit, or carbide burr rotary file bit for your specific application. We’ll explain the role of materials, shapes, sizes, and coatings, with a special focus on the popular 1/4 inch carbide burr bit (often written as 1 4 inch carbide burr bit) and complete carbide burr bit sets.
Understand Your Base Material
The starting point is always the material you’re cutting.
| Material Type | Recommended Tool | Notes |
|---|---|---|
| Mild & carbon steel | Double-cut tungsten carbide burr bit | Good balance of removal rate and surface finish |
| Stainless steel | Double-cut carbide burr bit with strong core | Use higher rigidity 1/4″ shank burrs |
| Cast iron | Single-cut carbide burr rotary file bit | Deep flutes handle hard and brittle material |
| Aluminum & copper | Aluminum-cut carbide burr bit | Larger flutes prevent clogging |
| Carbon fiber | Diamond coated carbide burr bit carbon fiber | Abrasive fibers require diamond-coated carbide |
| Plastics | Single- or double-cut burrs at low speed | Avoid melting the plastic |
Choose Between Carbide Burr Bit and Carbide Burr Drill Bit
Many users already own a drill but not a die grinder. That’s why carbide burr drill bits have become popular—they allow basic deburring and shaping using only a handheld drill.
Use a carbide burr bit in a die grinder when you need:
Higher RPM
Better control
Smoother surface finish
Use a carbide burr drill bit when you:
Only have a drill available
Need to deburr or enlarge holes in a portable setup
Want simple, low-cost versatility
In a professional metal workshop, most heavy tasks are handled by carbide burr die grinder bits, while carbide burr drill bits are reserved for quick jobs in the field.
Select the Correct Shank – Why 1/4 Inch Carbide Burr Bit Is the Standard
The most common industrial size is the 1/4 inch carbide burr bit (also written as 1 4 inch carbide burr bit). The 1/4″ shank provides a strong, rigid connection between the burr and the grinder.
Advantages of 1/4″ shank:
Handles aggressive cutting forces
Fits most pneumatic die grinders and many electric tools
Available in an enormous variety of head shapes and cuts
Smaller rotary tools often use 1/8″ shanks, but these are better for light hobby work. For industrial workloads, a 1/4 inch carbide burr bit is the reliable choice.
Pick the Right Head Shape and Cut Pattern
Common Head Shapes in a Carbide Burr Bit Set
| Shape | Typical Use | Keyword Focus |
|---|---|---|
| Cylinder flat end | Flatten welds, surface grinding | carbide burr bit, tungsten carbide burr bit |
| Cylinder ball nose | Fillets and blended corners | carbide burr die grinder bit |
| Ball | General contouring | Used in many carbide burr bit set kits |
| Tree pointed | Tight corners and slots | Ideal for carbide burr rotary file bit |
| Tree radius | Smooth transitions between surfaces | For 1/4″ die grinders |

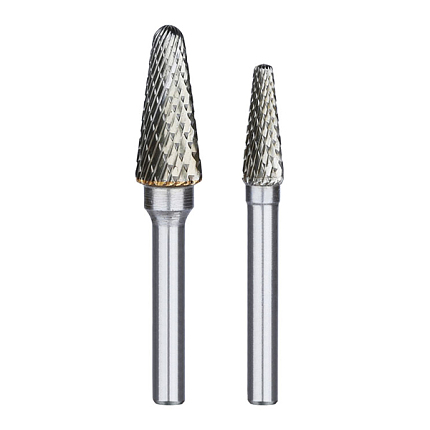

| Cone / countersink | Chamfering and deburring drilled holes | Common as carbide burr drill bit |
| Inverted cone | Undercuts and back-side deburring | Advanced fabrication work |
Cut Pattern Types
Single cut – Deep, straight flutes; high removal rate; leaves rougher finish.
Double cut – Intersecting flutes; smoother finish; easier to control.
Aluminum cut – Very large flutes; prevents loading in soft materials.
When describing your products, highlight both head shape and cut pattern so buyers know exactly what each carbide burr rotary file bit is designed to do.
Decide Whether You Need a Carbide Burr Bit Set
A carbide burr bit set is ideal if:
You handle many different jobs and materials
You want all standard shapes in one organized box
You’re setting up a new workshop or mobile repair kit
A typical 10-piece set of carbide burr die grinder bits might look like this:
| Piece | Shank Size | Shape | Suggested Application |
|---|---|---|---|
| 1 | 1/4″ | Cylinder flat | Weld removal on plates |
| 2 | 1/4″ | Cylinder radius | Blending fillets |
| 3 | 1/4″ | Ball | All-round contouring |
| 4 | 1/4″ | Tree pointed | Slots and tight corners |
| 5 | 1/4″ | Tree radius | Smooth transitions in pockets |
| 6 | 1/4″ | Cone | Edge chamfering, countersinking |
| 7 | 1/4″ | Inverted cone | Undercuts, back-side deburring |
| 8 | 1/4″ | Oval | General-purpose deburring |
| 9 | 1/4″ | Flame | Complex curves in molds |
| 10 | 1/4″ | Special profile | User-specific or industry-specific application |
When to Upgrade to Diamond Coated Carbide Burr Bit Carbon Fiber
If your work includes aircraft components, racing parts, or composite molds, standard burrs may wear out quickly. That’s when you should move to a diamond coated carbide burr bit carbon fiber design.
Benefits:
Longer tool life in abrasive carbon fiber
Clean edges with less fraying
Lower overall cost per part despite higher unit price
You can keep traditional tungsten carbide burr bits for metals and reserve diamond-coated tools for composite jobs.
Conclusion
Choosing the right burr doesn’t have to be confusing. Start with your material, then pick the proper tool type (carbide burr bit vs carbide burr drill bit), shank size (typically 1/4 inch carbide burr bit), head shape, and cut pattern. For maximum flexibility, invest in a quality carbide burr bit set, and for composites, step up to diamond coated carbide burr bit carbon fiber tools. With this framework, you can confidently match every job to the perfect burr.
