HNCARBIDE RPMT INSERTS

HNCarbide provides a full range of RPMT carbide inserts engineered for stable, high-precision CNC milling across steel, stainless steel, cast iron, alloy steel, and aluminum.

Our RPMT series covers the most widely used specifications, including RPMT 1204 inserts, RPMT 1204 carbide inserts, and special versions such as RPMT 1204 insert 0.473 for specific cutting depths and high-feed milling applications. These RPMT inserts are commonly used in indexable milling cutters, face mills, high-feed mills, and modular milling systems.

We also offer branded-compatible solutions including Iscar RPMT insert equivalents, Mitsubishi and Seco RPMT insert alternatives, and high-performance replacements for TaeguTec, Korloy, Kyocera, and Tungaloy RPMT milling inserts.

Each RPMT insert is manufactured using advanced CNC grinding to ensure consistent RPMT insert dimensions, precise cutting edges, optimized rake and chipbreaker geometry, and reliable clamping accuracy for smooth, stable machining.
Our premium carbide substrate and advanced coating technologies help reduce cutting forces, improve chip evacuation, enhance surface finish, and extend tool life—especially in steel and stainless-steel milling operations.

As a professional China RPMT insert manufacturer, HNCarbide supports global distributors with RPMT inserts for sale, competitive factory-direct RPMT insert prices, wholesale supply, and OEM/ODM customization.
Our RPMT inserts are fully compatible with indexable milling cutters from major brands such as Sandvik, Seco, Iscar, Mitsubishi, TaeguTec, Korloy, Kyocera, and Tungaloy.

Whether you need economical RPMT inserts, high-precision RPMT 1204 carbide inserts, aluminum-grade sharp-edge RPMT inserts, or reliable bulk supply for CNC workshops, HNCarbide ensures consistent quality, stable performance, and fast global delivery for all your milling applications.

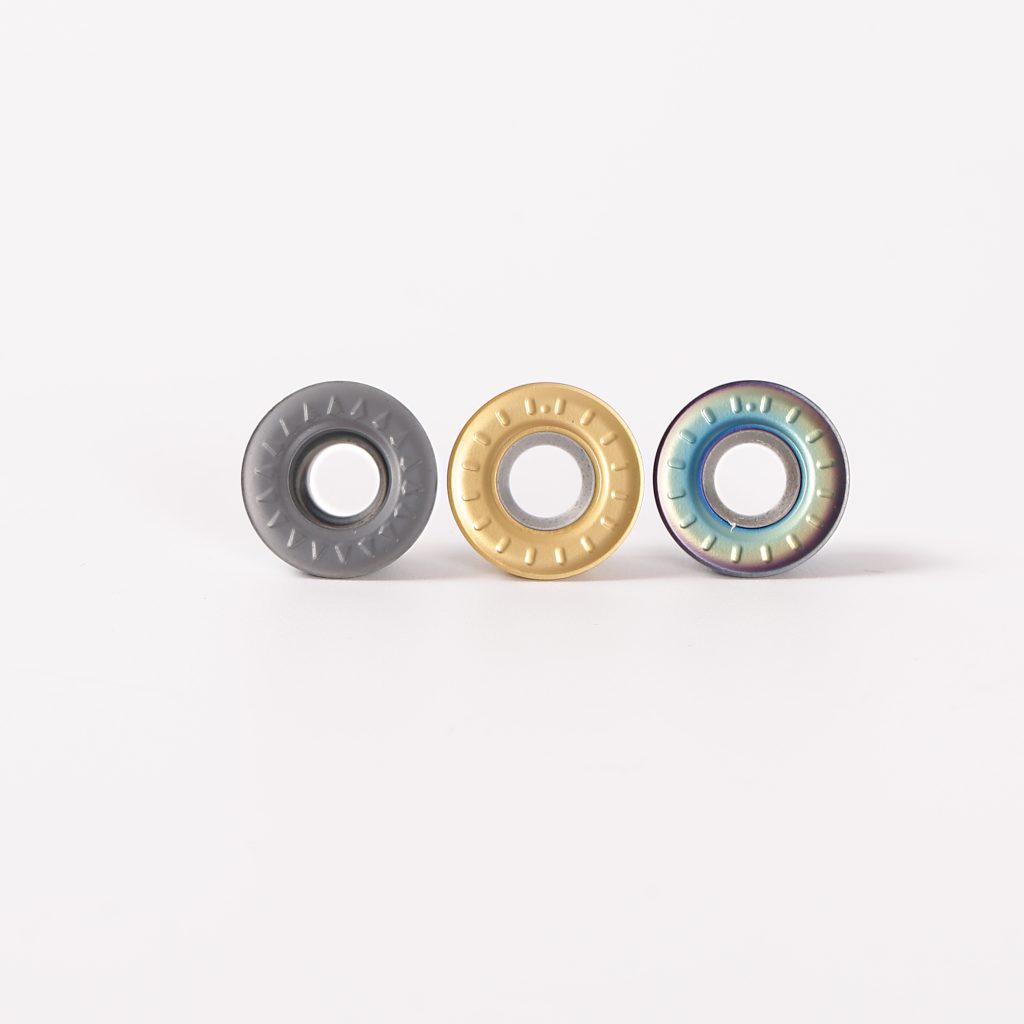

Product Image

At HNCarbide, our RPMT inserts are engineered for smooth milling performance, stable cutting, and long tool life.
We supply all major specifications including RPMT 1204 inserts, RPMT 1204 carbide inserts, and special versions such as RPMT 1204 insert 0.473 for high-feed and precision milling applications.

Each RPMT insert is produced with accurate dimensions, sharp cutting edges, and optimized chipbreaker geometry to ensure reliable machining in steel, stainless steel, cast iron, and aluminum.

Manufactured in our China RPMT insert facility with strict tolerance control, HNCarbide provides consistent quality, excellent surface finish, and competitive pricing for CNC milling cutters and indexable toolholders.

Product Specifications

Type Dimension(mm) APMX (mm) CVD PVD carbide Cermet
IC S D1 AN HN6130 HN8140 HN5110 HN5210 HN5120 HN5220 HN5130 HN530 HN7130 HN7140 HN7240
RPMT08T2MO-SM 8.00 2.78 3.40 11° 4
RPMT10T3MO-SM 10.00 3.97 4.40 11° 5
RPMT1204MO-SM 12.00 4.76 4.40 11° 6
RPMT1606MO-SM 16.00 6.35 5.50 11° 8
Grade Name Grade Features Grade Name Grade Features
HN1125 CVD coating, yellow color, general purpose machining grade, suitable for machining steel and stainless steel at medium to high cutting speeds, and outstanding for machining soft steel. HN205 PVD coated, black color, universal grade for machining of cast iron.
HN1225 CVD coating, black color, universal machining grade, suitable for low carbon steel, cast iron, stainless steel machining at low and equal cutting speeds, with better wear resistance. HN2051 PVD coating, bronze color, stainless steel semi-finishing and finishing.
HN1235 CVD coated, black and yellow, universal processing grade, suitable for all kinds of steel processing. HN9201S PVD coating, silver white, high temperature alloys, titanium alloys, semi-finishing and rough machining.
HN8061 PVD coating, bronze color, stainless steel, steel, high-temperature alloy processing, semi-finishing preferred. HN9202S PVD coating, silver white, high temperature alloys, titanium alloys, semi-finishing and rough machining.
HN3125 CVD coated, black color, universal grade for machining of cast iron. HN9501-3 PVD coating, black color, stainless steel semi-finish and finish machining.
HN9502-3 PVD coating, black color, stainless steel semi-finishing and roughing machining.

Are you ready to increase your market share of carbide inserts?

Just tell us which carbide inserts you are looking for and our team will help you hold the palm.

Raw Material Selection

Suitable materials such as tungsten carbide, ceramics, or high-speed steel are selected based on the blade’s application. These materials must offer high hardness and wear resistance.

Powder Metallurgy

Metal powders are mixed in precise ratios, pressed into shape, and then sintered at high temperatures to form blade blanks.

Imported Press Machine Forming

From importing presses to stamp out blade blanks, to subsequent sintering and coating, every step is strictly controlled, all to provide customers with stable and reliable blade solutions

Oswald Insert Pressing

Specifically designed for pressing various types of turning tool blanks, it enhances blade density and lifespan stability, ensuring more consistent batch dimensions and a more reliable cutting process.

Coating Application

The insert undergoes precision grinding and cleaning before being subjected to PVD/CVD vacuum coating, forming a multi-layered hard coating structure that combines high hardness, wear resistance, and stable lifespan.

Edge Preparation & Passivation

The insert edge is finely passivated to remove small dents and burrs, improve the strength and stability of the insert edge, and thus extend the service life of the insert.

Packaging & Shipping

At HNCarbide, every shipment of RPMT carbide inserts is carefully packaged to ensure your tools arrive safely and without damage.
Each RPMT insert is placed in a shock-resistant case, clearly labeled with full RPMT insert specifications, RPMT insert dimensions, and RPMT insert size, then sealed with moisture-proof material before boxing.

Large-volume orders of RPMT 1204 inserts or RPMT 1204 carbide inserts are further protected using double-wall cartons or wooden crates to guarantee safe international transport.
We work with trusted logistics partners to ensure your RPMT inserts, including special types such as RPMT 1204 insert 0.473, are delivered quickly and securely by air freight, sea freight, or express courier.

FAQ

An RPMT insert is a round, positive-rake indexable milling insert designed for high-stability operations such as face milling, contour milling, and copy milling.
RPMT inserts provide smooth cutting action, low cutting forces, and excellent chip control—making them ideal for steel, stainless steel, cast iron, and aluminum machining.

The “0.473” typically refers to the maximum depth of cut or insert radius engagement in specific cutter models (equivalent to 0.473 inches).
Some cutter manufacturers use the 0.473 value to indicate how much of the insert radius can be utilized safely during roughing or high-feed milling.
If your cutter specification mentions 0.473, RPMT 1204 is the correct matching insert.

Selection depends on your workpiece:

  • Steel (P) → TiAlN / AlTiN coated RPMT 1204

  • Stainless steel (M) → tougher substrate + heat-resistant coating

  • Cast iron (K) → wear-resistant carbide grade

  • Aluminum and non-ferrous metals (N) → polished, uncoated sharp-edge RPMT 1204 inserts
    Choosing the proper grade improves tool life, reduces vibration, and enhances surface finishing.

Yes, OEM customization is available including size, coating, packaging, and labeling. Custom options depend on product type and minimum order quantity.

All products undergo strict inspection, including material testing and dimensional checks. We follow ISO-standard quality control to ensure consistent performance.

Yes, we ship worldwide via DHL, FedEx, UPS, and sea freight. Delivery time varies by region and shipping method.

Yes, for qualified distributors we provide a complete support package:
1.Market protection

Regional or customer protection based on sales targets, avoiding price wars among our partners.

2.Marketing support

Catalogs, brochures, product photos, technical data sheets, online materials.

For key partners, joint promotion, exhibitions and digital marketing support.

3.Stable supply

Safety stock for fast-moving items and forecast-based production.

Priority production and regular shipments to reduce stock-out risk.

4.Worry-free after-sales

Clear quality warranty policy, quick response to claims.

Replacement, credit or other solutions after confirmation of issues.

5.Technical support

Tool selection and cutting parameter advice.

Problem analysis for different materials and machines.

Online training, documents, and when possible, on-site support for key accounts.
