End Mill for Stainless Steel
What is Stainless Steel in Basic Terms?
Stainless steel is an alloy steel that contains chromium (>12%) or nickel (>8%) as its main alloying elements. Chromium in stainless steel forms a thin, invisible chromium oxide film that gives it excellent corrosion resistance. When chromium content is 16–18%, the steel becomes acid-resistant stainless steel, suitable for harsh chemical environments. At high temperatures (>450°C), stainless steel maintains its strength, oxidation resistance, and toughness, making it suitable for heat-intensive applications.
Grades of Stainless Steel
Stainless steel offers multiple grades and surface finishes, making it versatile in a wide range of industries. It is 100% recyclable, making it an eco-friendly choice. The classification is based on microstructure, which is affected by alloying elements. There are 5 main categories of stainless steel:
- Austenitic Stainless Steel (300 series, e.g., 304, 316): Non-magnetic, excellent corrosion resistance. Common in kitchenware, food processing, and medical equipment.
- Ferritic Stainless Steel (400 series, e.g., 430): Magnetic, good corrosion resistance, lower toughness. Common in automotive trims, exhaust systems.
- Martensitic Stainless Steel (e.g., 410, 420): High strength and hardness, but lower corrosion resistance. Used in knives, cutting tools, turbine blades.
- Duplex Stainless Steel (e.g., 2205): Combination of austenitic and ferritic structures. High strength and stress corrosion cracking resistance. Used in oil & gas, chemical processing.
- Precipitation-Hardening Stainless Steel (e.g., 17-4PH): Can be heat treated for higher strength. Common in aerospace and high-performance mechanical parts.
Features of Stainless Steel While Processing
Machining stainless steel is challenging because of its:
• High toughness & strength → causes high cutting forces.
• Work hardening tendency → makes machining more difficult if improper tools are used.
• Low thermal conductivity → heat accumulates at cutting edges, leading to tool wear.
Selection of End Mill for Stainless Steel
When machining stainless steel, selecting the right end mill is critical:
• Material of Tool: Solid carbide end mills are preferred due to high hardness and wear resistance.

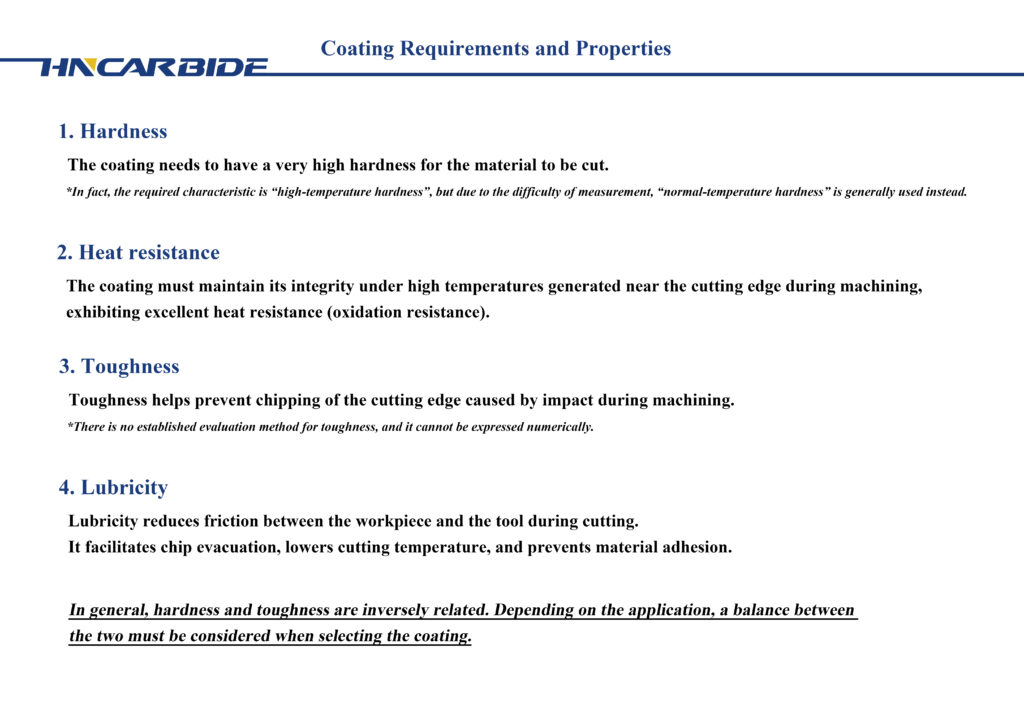

• Coatings: TiAlN, AlTiN, or DLC coatings improve heat resistance and reduce friction.

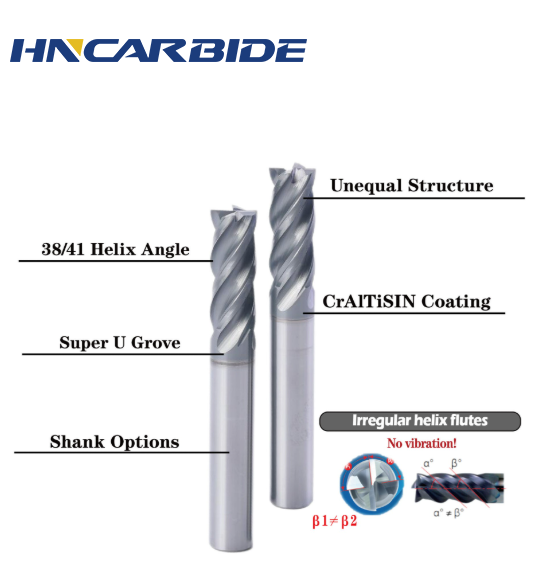

• Geometry: Variable helix design minimizes vibration; sharp cutting edges reduce work hardening; optimized flute count (4–6 flutes) helps with chip evacuation.
• Corner Radius End Mills help reduce stress and extend tool life.
Machine Cutting Parameters
To achieve efficient stainless steel machining:
• Cutting Speed (Vc): Moderate speed (30–60 m/min for carbide tools).
• Feed per Tooth (fz): Higher feed to avoid work hardening (0.05–0.2 mm/tooth depending on tool diameter).
• Coolant: Use high-pressure coolant to reduce heat and flush chips.
• Depth of Cut (ap): Prefer shallow to moderate depths to maintain stability.
Applications of CNC-Processed Stainless Steel
- Aerospace: Turbine components, fasteners, precision parts.
- Medical: Surgical instruments, implants, prosthetics.
- Automotive: Exhaust systems, injection system components.
- Food & Beverage: Processing machinery, hygienic equipment.
- Marine: Propellers, pumps, valves in corrosive seawater.
End Mill Summary
- Precision Machining: Achieves tight tolerances and burr-free surfaces.
• Stainless Steel Components: Handles complex profiles and internal features.
• High-Speed Machining: Increases productivity and reduces cycle time.
• Corrosion-Resistant Applications: Preserves stainless steel’s resistance during machining.
Conclusion
The end mill for stainless steel is an indispensable tool for industries demanding precision, durability, and efficiency. With the right choice of tool material, coating, and geometry, manufacturers can overcome machining challenges such as heat buildup, tool wear, and work hardening. By understanding stainless steel grades, machining features, and selecting optimized cutting parameters, industries can achieve high-quality stainless steel components with maximum productivity and cost-effectiveness.
