Why every cutting edge will wear—and why that’s not a defect
In metal cutting, tool wear is inevitable. Even with optimal fixturing, premium carbide, and dialed-in coolant delivery, the friction and stress at the chip–tool interface gradually degrade the cutting edge. That doesn’t mean something is wrong with your process; it’s the natural outcome of cutting metal. The rate and mode of wear depend on the insert grade and geometry, the workpiece metallurgy and inclusions, machine-tool rigidity, coolant type and delivery, and—crucially—your cutting data.

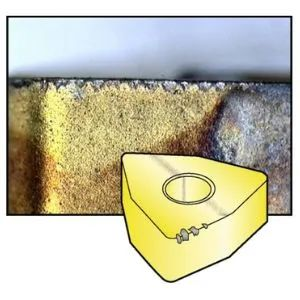

Among the most common early-life failures is edge chipping: small fragments break off the cutting edge due to mechanical instability, vibration, or local stress risers (e.g., hard inclusions, interrupted cuts). When you see tiny pieces missing from the edge, you’re looking at chipping—not uniform flank wear. Typical corrective levers include improving rigidity, selecting a tougher grade/edge prep, easing the feed at entry/exit, and sometimes increasing cutting speed to move out of a harmful resonance window.
The five practical wear modes you’ll actually encounter
- Uniform flank wear (VB): A steady land on the clearance face. Normal end-of-life indicator.
- Crater wear (KT): A pit on the rake face where hot, high-velocity chips slide. Common in high-speed cutting and dry/semi-dry operations.
- Edge chipping: Small, irregular breakouts along the cutting edge due to low stiffness, inclusions, or interrupted cuts.
- Built-up edge (BUE): Work material cold-welds to the edge, then breaks off, damaging the edge and the surface finish.
- Thermal/mechanical cracks: Transverse or radial cracks from thermal cycling (on–off cuts, high coolant shock) or vibration.
Takeaway: Knowing the mode of wear is more actionable than only tracking “how much.” Each mode points to different levers (rigidity vs. coolant vs. geometry vs. parameters).
How to capture macro and microscopic wear images that your team can trust
3.1 Macro (visible-light) photos — “What’s happening overall?”
- Magnification: 1× to 10× (phone + macro lens or a stereoscope).
- Lighting: Use two off-axis LED sources at ~45°; avoid harsh on-axis glare.
- Angles: Rake face at ~30–45° incidence; Clearance face at ~30–45°; True edge-on profile to show edge radius/chipping.
- Background: Matte black or light-gray card to avoid auto-exposure errors.
- White balance: Fix to 5000–6500 K to keep colors consistent across runs.
- Reference scale: Include a 1 mm or 0.5 mm scale rule in frame.
3.2 Microscopic photos — “What’s the failure mechanism?”
- Instrument: Metallurgical microscope (reflected light) or digital microscope.
- Magnification set: 50×, 200×, 500× as a standard stack.
- Illumination: Ring light + one oblique fiber to reveal topography.
- Focus stacking: If available, stack 5–10 focal planes for a crisp edge.
- Calibration: Shoot a calibration grating once per session (e.g., 10 μm/div).
- Naming convention: Part-Grade-Op#-ToolPos-InsertIndex_Mag_Shot#.jpg
Measurement playbook: consistent data beats “best guess”
Record these fields every time you retire a tool or reach a scheduled checkpoint:
– VB (max/avg) on the clearance face (mm)
– KT (depth/area) on the rake face (μm, or qualitative if no calibrated reticle)
– Notch wear (VN) at entry/exit (mm)
– Chipping length density (# chips/mm edge)
– Surface finish of the last part (Ra/Rz)
– Cut count / time in cut, insert index, operation code, workpiece heat/lot
– Cutting data: vc (m/min), fz or f (mm/rev or mm/tooth), ap (mm)
– Coolant: type, % concentration, delivery (flood/MQL/through-tool), nozzle position
– Rigidity notes: overhang, workholding type, observed chatter bands, etc.
Actionable diagnostics: symptom → likely cause → what to change first
Table 1. Field diagnostic matrix (illustrative)
Symptom at the edge | Likely primary cause | First 2–3 corrective actions |
Small random edge chips (early life) | Poor rigidity, vibration, hard inclusions, interrupted cut | 1) Improve fixturing/shorten overhang; 2) Switch to tougher grade/stronger edge prep (T-land, hone); 3) Lower feed at entry/exit; consider slightly higher cutting speed to escape chatter band. |
Wide, even flank wear band (late life) | Normal abrasive wear | 1) Increase wear-resistant grade/coating; 2) Lower speed slightly; 3) Increase coolant concentration and direct it at chip–tool interface. |
Crater wear on rake face | High temperature, high chip speed | 1) Reduce vc; 2) Use more crater-resistant coating (e.g., AlTiN/TiAlN); 3) Improve coolant aim/flow or switch to through-tool. |
Notch wear at entry/exit | Oxidation/work-hardened skin, dry entry, scale | 1) Add lead-in chamfer or pre-face pass; 2) Increase coolant at the entry point; 3) Use tougher grade. |
Built-up edge (BUE), torn surface | Adhesion at low–moderate speeds | 1) Increase vc; 2) Reduce feed slightly; 3) Use sharper edge/hone reduction; 4) Raise coolant concentration. |
Wear-limit guidelines you can publish on the shop floor
Table 2. Typical wear limits for common operations (illustrative)
Operation | Default end-of-life limit | Secondary stop rule |
OD/ID turning (finishing) | VBmax ≤ 0.15 mm | Ra exceeds 1.6 μm or visual micro-chipping spreads > 5 chips/cm |
OD/ID turning (roughing) | VBmax ≤ 0.30 mm | Notch wear visible or chip-control fails |
Face milling (finishing) | VBavg ≤ 0.08 mm | Burr height > 0.10 mm |
Face milling (roughing) | VBavg ≤ 0.20 mm | Edge chipping density > 10 chips/cm |
Drilling (carbide) | Margin wear ≤ 0.15 mm | Hole size drift > IT10 or exit burr unacceptable |
Example “before/after” with photos you can replicate on your line
Part: 42CrMo4 (AISI 4140) QT, 28–32 HRC
Tooling: HUANA CNMG12** P25, 0.4 mm hone, TiAlN
Setup: 3-jaw + tailstock; overhang 2.0×D
Coolant: 7% semi-synthetic, flood
Original cut: vc 180 m/min, f 0.28 mm/rev, ap 2.5 mm
Observations at 7 min: distinct chatter marks on surface; edge shows scattered micro-chips near entry; Ra 3.2 μm.
Macro photo (Fig. 5): three chips missing on the entry quadrant.
Microscopic photo (Fig. 6, 200×): micro-fractures emanating from edge.
Changes applied (one at a time):
1) Reduced overhang to 1.6×D (added steady rest)
2) Switched to tougher grade / stronger T-land edge prep
3) Kept f constant, raised vc to 200 m/min to bypass chatter band
4) Added 10° lead-in ramp to avoid shock at entry
Result:
Observations at 12 min: no new chips, uniform VBmax ≈ 0.18 mm; Ra 1.4 μm; burr nearly eliminated.
Macro (Fig. 7): continuous wear band.
Micro (Fig. 8, 500×): blunt but intact edge, no crack propagation.
Camera-ready Word inserts (replace with your photos)
- Figure 1 (Macro): Uniform flank wear after 25 min, VB≈0.20 mm; 8× magnification.
- Figure 2 (Macro): Edge chipping at entry; three chips circled; 6×.
- Figure 3 (Micro 200×): Crater wear on rake face; central pit depth ~12 μm.
- Figure 4 (Micro 500×): Micro-cracking suppressed after grade change; no propagation lines.
Table 3. Photo capture checklist (printable)
Step | Macro checklist | Micro checklist |
1 | Clean insert with alcohol; dry | Clean, mount flat on stage |
2 | Place scale (1 mm) in view | Calibrate scale (10 μm/div) |
3 | Two LED lights at ~45° | Ring + oblique fiber light |
4 | Shoot rake, clearance, edge | Shoot at 50× / 200× / 500× |
5 | White balance fixed | Focus stack if available |
6 | Name files to convention | Add captions with magnification |
Parameter windows: illustrative starting points
Table 4. Example cutting data baselines (carbide, flood coolant, illustrative)
Material | Operation | vc (m/min) | f (mm/rev or mm/tooth) | ap (mm) | Notes |
1045 (HB 200) | OD rough turn | 180–260 | 0.25–0.40 | 2–4 | Raise vc if BUE; lower if crater wear dominates |
1045 (HB 200) | OD finish turn | 200–300 | 0.10–0.20 | 0.5–1.5 | Sharper edge for Ra ≤ 1.6 μm |
17-4PH (H900) | Face mill (6F, Ø63) | 120–180 | 0.05–0.10/tooth | 0.5–1.0 | Prefer through-tool coolant; avoid BUE |
6061-T6 | Face mill (8F, Ø80) | 600–900 | 0.08–0.18/tooth | 0.5–2.0 | Use polished rake; eliminate BUE |
Inconel 718 | OD rough turn | 30–60 | 0.15–0.30 | 1–3 | Prioritize rigidity; avoid dwell |
Rapid “photo-to-action” workflow for your operators
- Detect & tag: When the life counter flags a stop, take macro photos from the three angles plus one micro at 200×.
- Classify: Choose the wear mode from Section 2.
- Decide: Use Table 1 to pick your top two corrective actions.
- Document: Enter VB/KT and surface finish; attach photos.
- Deploy: Update NC program notes or tool card (e.g., “Add 10° lead-in; switch to T-land; vc+10%”).
- Review weekly: Trend VB vs. parts/cut time; look for stability and variance.
FAQ (for huanatools.com readers)
Q1. Is a chipped edge always a “bad insert”?
Not usually. Early-life chipping often points to vibration or entry shock rather than material defects. Improve rigidity, add a lead-in, and try a tougher grade/edge prep.
Q2. Why does my surface finish get worse right before end-of-life?
As VB grows, the contact length increases, raising forces and heat. You’ll see higher Ra, more burr, and possible notch wear. Use the wear-limit table to stop before finish degrades.
Q3. Should I slow down to stop BUE?
Counter-intuitively, mild increases in cutting speed often reduce BUE by preventing adhesion. Also try a sharper edge and higher coolant concentration.
Q4. Do I need a microscope?
Macro photos solve 70–80% of troubleshooting. A simple 200× digital scope pays for itself on stainless and nickel alloys where crater wear and micro-fractures matter.
Conclusion: Photograph, measure, decide—repeat
Tool wear will happen; your advantage is how fast you recognize the pattern and how consistently you respond. With a disciplined photo routine (macro + micro), a few simple measurements (VB/KT), and the diagnostic matrix in this article, you’ll convert vague “the insert failed” complaints into targeted actions that boost stability, extend tool life, and improve part quality.
Ready-to-paste Word blocks
Block A — Figure bundle
- Figure 1. Macro—uniform flank wear (VB≈0.20 mm), 8×.
- Figure 2. Macro—edge chipping at entry (three chips circled), 6×.
- Figure 3. Micro—crater wear (KT) on rake face, 200×.
- Figure 4. Micro—micro-chipping suppressed after grade change, 500×.
Block B — Data table (copy to Word table)
Mode | Photo reference | Metric | End-of-life guide |
Flank wear | Fig. 1 | VBmax (mm) | 0.15–0.30 (op-dependent) |
Chipping | Fig. 2 | Chips/cm edge | ≤ 5 (finishing), ≤ 10 (roughing) |
Crater wear | Fig. 3 | KT depth (μm) | ≤ 15 (finishing), ≤ 30 (roughing) |
Notch wear | Macro edge | VN (mm) | ≤ 0.10 (finishing) |
Block C — Corrective quick picks
- Edge chipping → Boost rigidity, tougher grade, ramp entry, slightly higher vc if chatter-related.
- BUE → Sharper edge, higher vc, richer coolant, polished rake.
- Crater wear → Lower vc, switch coating, improve coolant aim.
- Notch wear → Pre-face/lead-in, improve entry coolant, tougher grade.
