When it comes to precision machining, few processes are as fascinating—or as critical—as deep hole drilling. It’s a technique that goes far beyond standard drilling, enabling manufacturers to achieve exceptional accuracy and depth in complex parts.
But do you truly understand what deep hole drilling involves, how it works, and why it’s so vital to industries like aerospace, automotive, and oil & gas? Let’s dive deeper.
1. What Is Deep Hole Drilling?
In machining, a “deep hole” typically refers to any hole with a depth-to-diameter ratio greater than 7:1.
This means that if the diameter of your hole is 10 mm, anything deeper than 70 mm qualifies as a deep hole.
Originally, the technique was developed for gun barrel manufacturing, where extreme accuracy and consistency were required. Over time, it evolved into an advanced machining process used across multiple industries—from automotive components and aerospace landing gear to hydraulic cylinders and oil drilling tools.
Deep hole drilling can achieve ratios as high as 400:1, while maintaining excellent straightness and surface finish.
2. Types of Deep Hole Drilling Processes
There are several main methods of deep hole drilling, each suited to different applications and precision requirements.
2.1 Gun Drilling

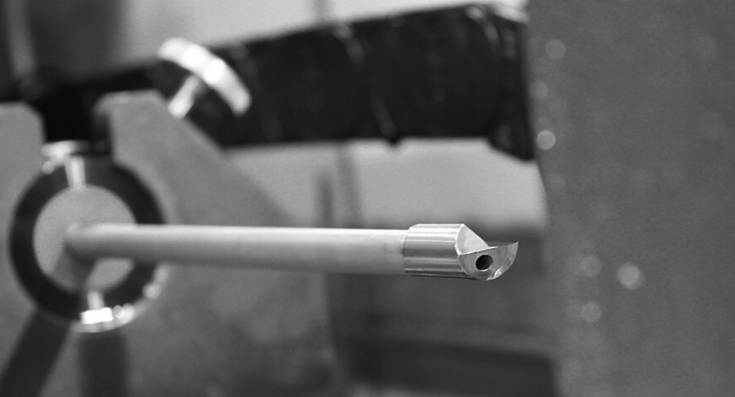

The gun drilling method uses a long, slender cutting tool with a single cutting edge and a through-coolant hole that allows high-pressure coolant to flow directly to the cutting zone. This coolant not only cools and lubricates the tool but also helps remove chips efficiently through a single flute along the drill body.
Key advantages include:
Extremely straight and accurate holes
Excellent surface finish
Ideal for holes from 1 mm up to 40 mm in diameter
This method is common in precision parts like fuel injectors, medical devices, and molds.

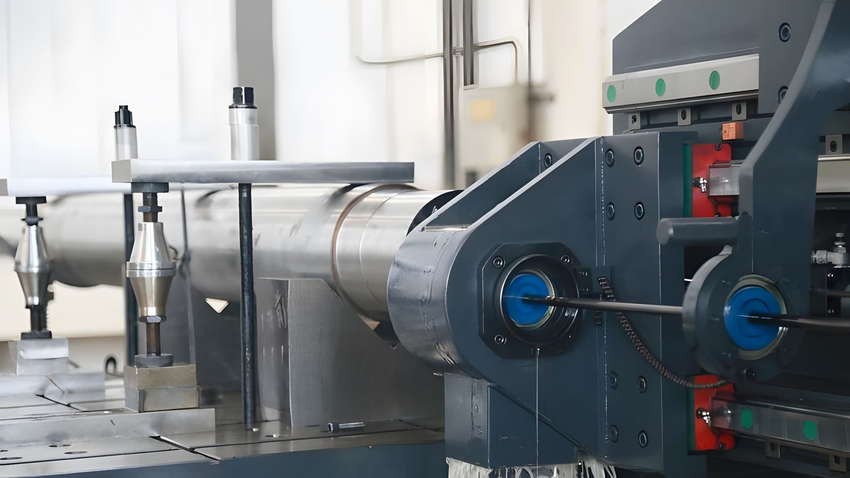

2.2 BTA (Boring and Trepanning Association) Drilling
Introduced in the 1940s, BTA drilling—also known as single-tube system drilling—was designed for larger diameters and deeper holes than gun drilling.
In this method:
The cutting fluid is delivered outside the drill tube, surrounding the tool.
Chips are evacuated through the inside of the hollow drill tube.
BTA systems typically work with diameters from 20 mm to 200 mm, and can achieve depths up to 4000 mm.
This makes BTA drilling the go-to method for heavy industries—such as making crankshafts, hydraulic cylinders, and oil drilling components.
2.3 Ejector Drilling (Twin Tube System)
The ejector or twin-tube system is a variation of BTA drilling, commonly used in conventional machining centers.
Here, coolant is pumped between two concentric tubes. It exits near the cutting head, cooling and lubricating the cutting area before carrying chips back through the inner tube.
This method is ideal for deep holes with up to 100× diameter depth—especially when the workpiece design doesn’t allow for sealing systems like those used in BTA setups.

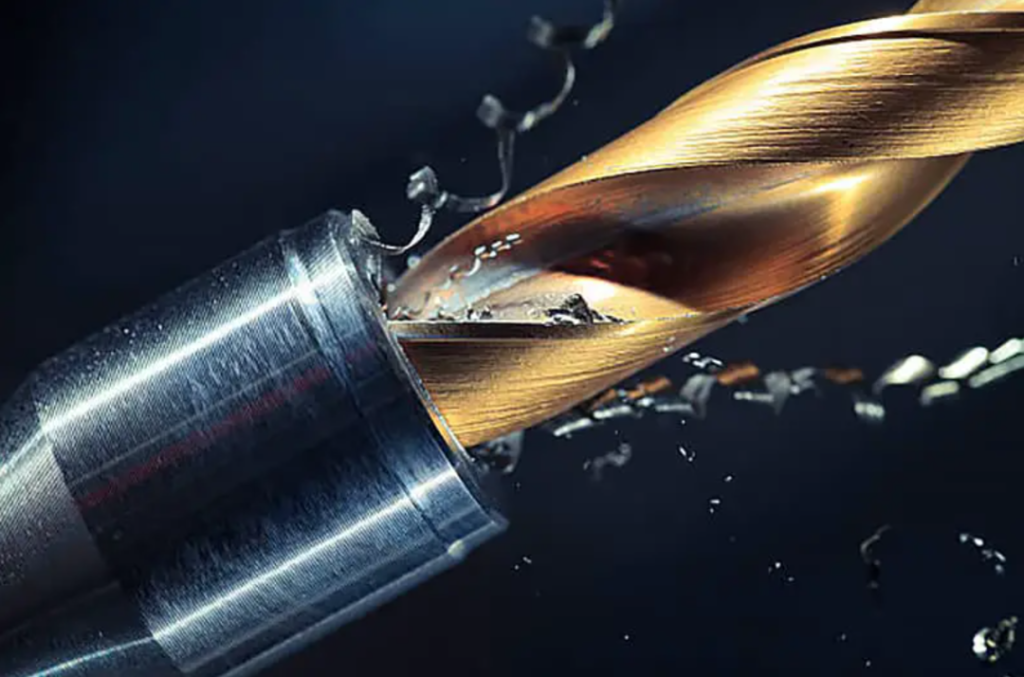

2.4 Extra-Long Twist Drills
For less demanding applications, extra-long twist drills (up to 30× diameter) can be used. These tools are typically made from high-speed steel (HSS) or cobalt-alloy steel, and often feature PVD coatings to improve wear resistance and extend tool life.
Table: Comparison of Deep Hole Drilling Methods
Method | Diameter Range | Typical Depth Ratio | Coolant Flow | Typical Applications |
Gun Drilling | 1–40 mm | Up to 300×D | Through internal hole | Precision small holes (molds, fuel injectors) |
BTA Drilling | 20–200 mm | Up to 400×D | External in, internal out | Heavy-duty machining (crankshafts, oil tools) |
Ejector Drilling | 18–65 mm | Up to 100×D | Between twin tubes | General-purpose deep holes |
Extra-long Twist Drill | 5–30×D | Up to 30×D | Conventional | Shallow or medium-depth holes |
3. Key Advantages of Deep Hole Drilling
3.1 Exceptional Precision
Because deep hole drilling uses specialized machines and tool systems, it can maintain exceptional straightness and tight tolerances even at extreme depths.
This is especially critical in aerospace, medical, and energy sectors, where component performance depends on accuracy within microns.
3.2 Superior Surface Finish
The high-pressure coolant flow and continuous chip removal result in smoother surfaces compared to standard drilling methods.
A better surface finish reduces friction, minimizes wear, and improves the longevity of moving parts, especially in hydraulic and pneumatic systems.
3.3 Efficiency and Productivity
Modern deep hole drilling machines are CNC-controlled and highly automated, allowing multiple holes to be drilled simultaneously.
This ensures not only higher productivity but also repeatable consistency, reducing scrap and rework costs.
4. Industrial Applications
4.1 Aerospace and Defense
The aerospace sector demands tight tolerances and high structural integrity. Deep hole drilling is used in manufacturing components such as:
Landing gear shafts
Turbine blades
Structural parts for lightweight aircraft
In the defense industry, deep hole drilling remains fundamental—especially in firearm barrels, where straightness and smoothness are critical for accuracy.
4.2 Automotive Industry
Automotive engineers rely on deep hole drilling for components that require precision internal channels, such as:
Fuel injectors
Crankshafts
Engine blocks
Hydraulic systems
By maintaining dimensional accuracy and internal smoothness, manufacturers can ensure optimal fuel efficiency and engine performance.
4.3 Oil and Gas Exploration
The oil and gas industry uses deep hole drilling to create long, straight bores in drilling tools and exploration equipment.
This process enables the manufacture of:
Drill collars
Downhole tools
Valve bodies
The ability to maintain consistent wall thickness is critical for pressure resistance and structural integrity in extreme environments.
5. Key Process Considerations
To achieve the best results in deep hole drilling, manufacturers must carefully control several factors:
Tool Selection – Match tool type and geometry to the material, diameter, and depth.
Cutting Parameters – Optimize cutting speed, feed rate, and depth of cut for precision and chip evacuation.
Coolant System – Use high-pressure coolant with proper filtration to prevent clogging and tool wear.
Machine Stability – Ensure rigid clamping to minimize vibration and maintain hole straightness.
Maintenance – Regularly inspect and replace worn tools to prevent deviations or surface defects.
6. Why Deep Hole Drilling Matters Today
As industries push for lighter, stronger, and more efficient designs, the need for precision internal machining has never been higher.
Deep hole drilling enables engineers to create parts that:
Reduce material waste
Enhance heat dissipation
Improve product performance
From high-speed trains to medical implants, deep hole drilling supports the technologies that shape our modern world.
