DNMG inserts are one of the most widely used negative carbide turning inserts in CNC machining. Thanks to their 55-degree diamond shape, strong cutting edge design, and double-sided economy, DNMG turning inserts are commonly selected for steel, stainless steel, and cast iron machining in high-volume production environments.
In this guide, we will explain DNMG insert full form, DNMG insert angle, DNMG insert dimensions, DNMG insert holders, and DNMG insert specifications, helping buyers, machinists, and distributors select the correct DNMG insert for stable and cost-effective turning.
1. What Is a DNMG Insert?
A DNMG insert is a negative-rake carbide turning insert defined by ISO standards. DNMG inserts feature a 55° diamond shape and offer four usable cutting edges, making them highly economical compared to positive inserts.
Because of their strength and stability, DNMG inserts are widely used in:
External turning
Facing
Light profiling
Continuous and semi-interrupted cutting
DNMG inserts are especially popular in CNC lathes used in automotive, hydraulic, mold, and general engineering industries.
2. DNMG Insert Full Form (ISO Code Meaning)
The ISO code DNMG describes the geometry and tolerance of the insert.
| Letter | Meaning | Description |
|---|---|---|
| D | Shape | 55° diamond |
| N | Clearance angle | 0° (negative insert) |
| M | Tolerance | Medium tolerance |
| G | Clamping / type | Double-sided insert |
Understanding the DNMG insert full form helps ensure compatibility with holders and correct cutting performance.
3. DNMG Insert Angle – Why 55° Is Important
The DNMG insert angle is 55°, which provides an excellent balance between cutting edge strength and accessibility.
Compared with other turning inserts:
| Insert Type | Included Angle | Strength | Typical Application |
|---|---|---|---|
| DNMG | 55° | Medium–High | Profiling & general turning |
| CNMG | 80° | Very High | Heavy roughing |
| VNMG | 35° | Low | Precision finishing |
DNMG inserts are often chosen when CNMG inserts are too bulky and VNMG inserts are too weak.

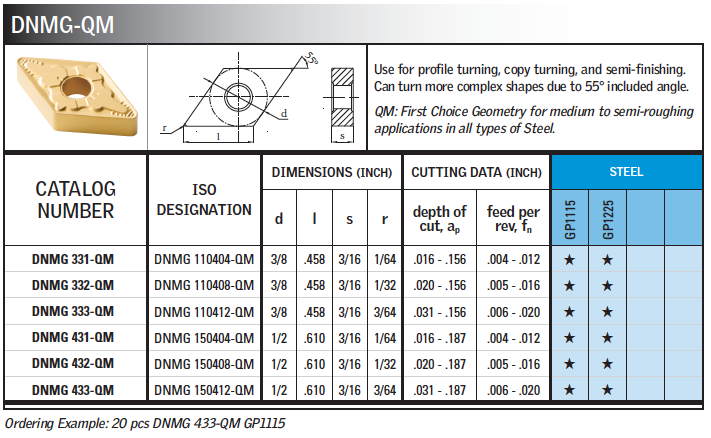

4. DNMG Insert Dimensions Overview
DNMG inserts are produced according to ISO and ANSI standards. The most popular size globally is DNMG 432 insert.
| ISO Code | ANSI Code | Thickness (mm) | Nose Radius (mm) |
|---|---|---|---|
| DNMG 150404 | DNMG 431 | 4.76 | 0.4 |
| DNMG 150408 | DNMG 432 | 4.76 | 0.8 |
| DNMG 150412 | DNMG 433 | 4.76 | 1.2 |
| DNMG 150608 | DNMG 442 | 6.35 | 0.8 |
5. DNMG Insert Specification (Grades, Chipbreakers, Coatings)
A complete DNMG insert specification includes:
Carbide grade
Chipbreaker geometry
Coating type
Common DNMG Grades
| Grade | Material | Feature |
|---|---|---|
| HN55 | Stainless steel | Sharp cutting edge |
| HN60 | Carbon steel | Balanced performance |
| HN65 | Alloy steel | Long tool life |
| HN80 | Cast iron | High wear resistance |
DNMG Chipbreaker Types
| Chipbreaker | Cutting Type |
|---|---|
| MF | Finishing |
| MM | Medium cutting |
| MR | Roughing |
DNMG Insert Coatings
| Coating | Advantage |
|---|---|
| TiN | Low friction |
| TiAlN | Heat resistance |
| CVD | Heavy-duty machining |
6. DNMG Insert Holder Compatibility
DNMG inserts are compatible with negative turning holders such as:
DDJNR / DDJNL
DCLNR / DCLNL
DWLNR / DWLNL
Choosing the correct DNMG insert holder ensures stable clamping and prevents insert breakage.
7. DNMG Turning Insert Applications
DNMG turning inserts are commonly used for:
Carbon steel
Alloy steel
Stainless steel
Cast iron
Typical industries include automotive parts, shafts, valves, and general CNC machining.
8. Conclusion
DNMG inserts provide an excellent balance of strength, economy, and versatility. Understanding DNMG insert angle, dimensions, holders, and specifications allows machinists and buyers to optimize machining efficiency and tool life.
