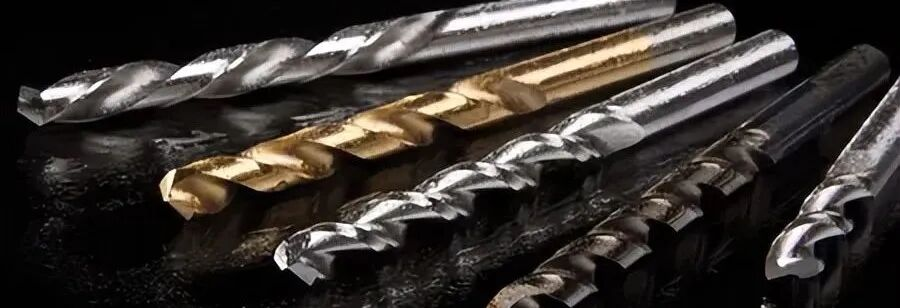

In modern machining, drilling is one of the most common and essential processes used for creating holes in metals, plastics, and composite materials. The most widely used tool for this purpose is the twist drill. Although it may look simple, a twist drill’s geometry is complex and precisely designed to balance cutting efficiency, chip evacuation, and stability.
To achieve optimal drilling performance, it is essential to understand the eight fundamental features of a twist drill and how each affects the cutting process. These geometric elements work together to determine the drill’s accuracy, lifespan, and suitability for various materials.
2. Why Geometry Matters
Different materials require different cutting characteristics. For example, drilling into soft aluminum requires a large helix angle to clear long chips easily, while hard steel benefits from a smaller helix angle for stability and control. Understanding the relationship between these geometrical parameters helps machinists and engineers select the right drill type for each job.
3. The Eight Key Features of Twist Drills
(1) Point Angle

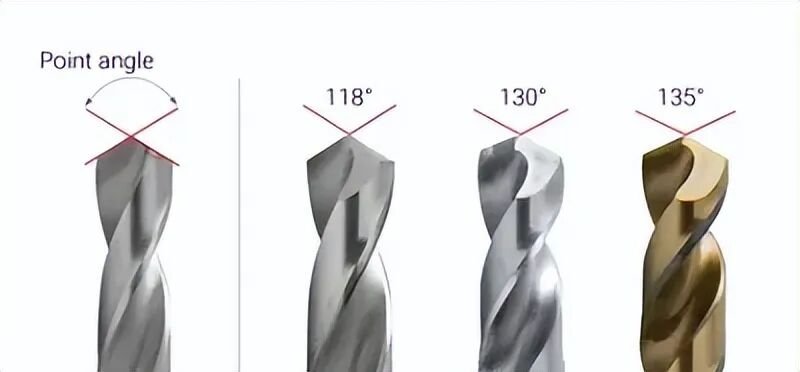

The point angle is located at the tip of the drill and is measured between the two main cutting edges. It determines how the drill enters the workpiece.
Smaller point angle (e.g., 90°–118°): Centers more easily and reduces slipping, even on curved surfaces, but requires higher feed pressure.
Larger point angle (e.g., 130°–140°): Shortens drilling time and improves penetration rate, ideal for hard materials.
A smaller angle increases cutting edge length, while a larger angle shortens it—affecting both stability and speed.
(2) Main Cutting Edge
The main cutting edges perform the majority of the cutting work. Each twist drill typically has two of them, connected by the chisel edge. Longer cutting edges improve chip removal and surface finish, while shorter edges enhance tool stability.
(3) Chisel Edge
Located at the drill’s center, the chisel edge does not perform cutting but acts as a wedge that helps the drill penetrate the material.
However, the chisel edge also causes increased friction and heat generation, which can reduce tool life. Optimizing the chisel edge geometry or thinning the web helps minimize these negative effects.
(4) Relief (Primary and Secondary)
The primary and secondary relief faces are located behind the cutting edges. Relief grinding reduces the size of the chisel edge and decreases friction, improving centering and reducing feed force.
Common relief shapes include:
N-type (standard spiral point): General-purpose use.
type (split point): Better centering and reduced thrust, suitable for harder materials.
(5) Flute Shape and Profile
The flutes are the helical grooves that run along the body of the drill. They serve two main functions:
Transporting chips out of the hole.
Allowing cutting fluid to reach the cutting edge.
A wider flute allows better chip evacuation but reduces core thickness (and thus drill strength). A narrower flute provides higher stability but can cause chip congestion. The balance between flute width and core thickness must match the work material.
4. Comparison of Flute and Core Geometry
Flute Profile | Chip Removal Efficiency | Core Strength | Suitable Materials |
Wide Flute / Shallow Profile | Excellent chip evacuation | Lower stability | Aluminum, soft metals |
Medium Flute / Standard Profile | Balanced chip flow and strength | Moderate | General-purpose steels |
Narrow Flute / Deep Profile | Limited chip space | High stability | Hard steel, cast iron |
The flute depth directly affects the core thickness. Shallow flutes result in a larger core diameter (higher rigidity), while deep flutes reduce core thickness (better chip evacuation but less stability).
(6) Web (Core)
The core or web is the solid portion between the flutes. It provides the drill’s rigidity and strength. A thicker web enhances stability and allows higher torque transmission—ideal for harder materials and handheld drills. Toward the shank, the web typically thickens to improve torsional strength.
(7) Margin and Secondary Cutting Edge
Margins are narrow lands along the outer edges of the flutes. They help guide the drill and maintain straight hole alignment. A sharp margin produces a smoother hole surface and reduces friction.
The secondary cutting edge, located between the margin and flute, helps break off chips adhering to the workpiece wall, improving surface quality.
(8) Helix Angle
The helix angle defines the curvature of the flutes and determines how chips form and evacuate.
Large helix angle (27°–45°): Ideal for soft materials forming long chips; promotes smooth chip evacuation.
Small helix angle (10°–19°): Suitable for hard, brittle materials forming short chips.
Most standard twist drills have a helix angle between 19° and 40°, offering a balanced compromise between strength and chip control.
5. Interrelationship of Features
Each of the eight characteristics must work in harmony to ensure effective drilling. For example:
A smaller point angle pairs well with large helix angles for soft materials.
Thicker cores should be combined with narrower flutes for harder materials.
Proper relief geometry reduces thrust force and prevents overheating.
Selecting the right combination based on the material and machining conditions is crucial to achieving consistent results.
6. Summary Table: Key Features and Their Functions
Feature | Function | Effect on Performance |
Point Angle | Determines entry and centering | Affects drilling speed and pressure |
Main Cutting Edge | Performs material removal | Influences chip formation and surface quality |
Chisel Edge | Connects main edges, initiates penetration | Increases thrust and heat generation |
Relief Faces | Reduce friction and thrust | Improve centering and cutting efficiency |
Flute Shape | Chip evacuation and coolant flow | Affects stability and chip control |
Core Thickness | Provides drill strength | Determines rigidity and torque resistance |
Margin & Secondary Edge | Guide the drill and improve hole finish | Reduce vibr |
